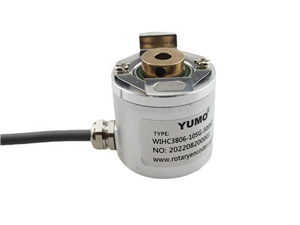

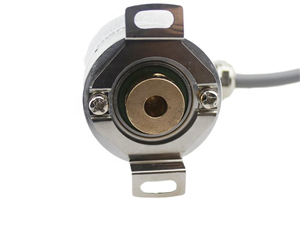

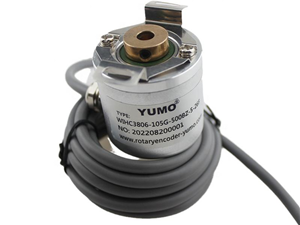

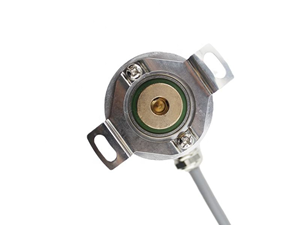

Waterproof 500P/R 6mm Hollow Shaft Incremental Rotary Encoder WIHC3806 Series

Waterproof 500P/R 6mm Hollow Shaft Incremental Rotary Encoder WIHC3806 Series

Feature:
A Hollow-Shaft Incremental Rotary Encoder, also called a hollow shaft encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code.
There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaftmaking them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typicallyfurther processed elsewhere into information such as speed, distance and position.

Application:

Rotary encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. speciapurpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and

rotating radar platforms.

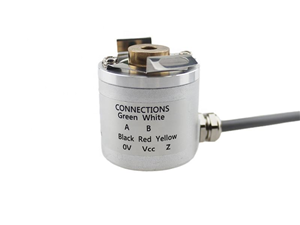

the output signals

A phase. B-phase. Z phase

the output format

Open collector output, voltage output, push-pull output

200kHz
