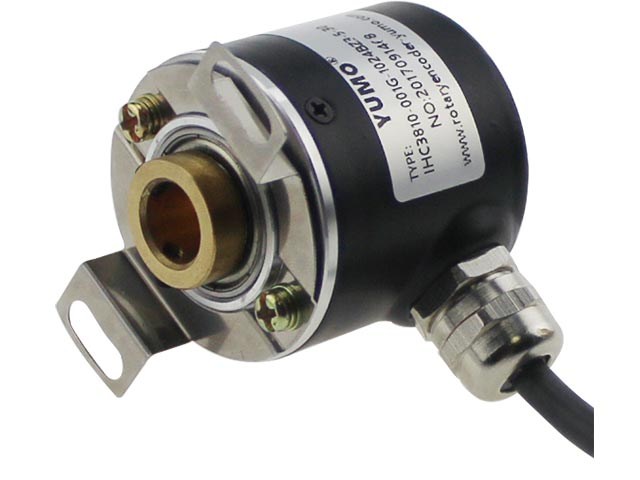

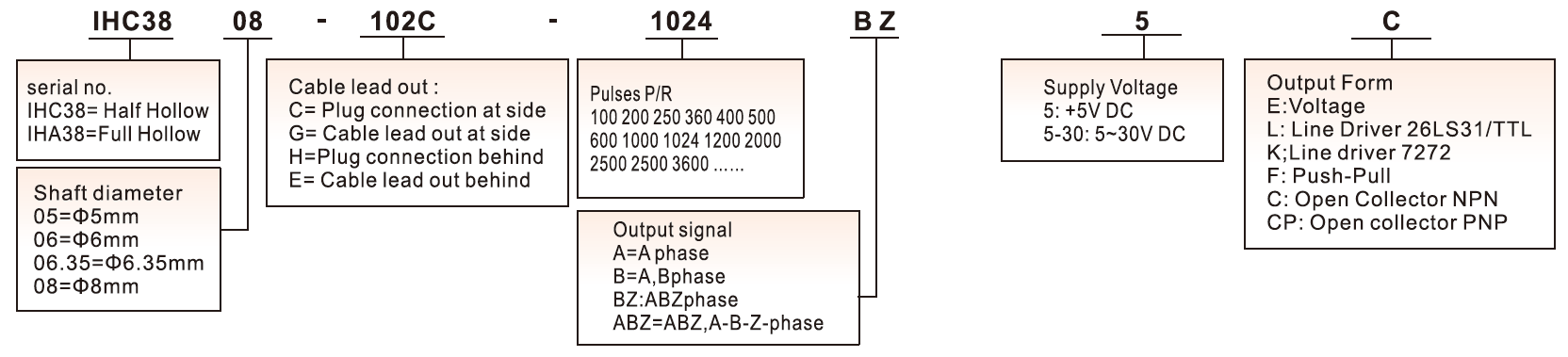

IHC3808 Series Hollow-Shaft Incremental Rotary Encoder

Feature
A hollow encoder, also called a  hollow shaft encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code.
There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaftmaking them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typicallyfurther processed elsewhere into information such as speed, distance and position.

Application

Automatic control,measurements,robotic X-Y labor and printing machines.

High reliability,long life,strong anti-interference ability and wide range  oftemperature adaption.

Rotary encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. speciapurpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and
rotating radar platforms.

Electrical  Specification

Output circuit

Open collector

Voltage output

Push pull output

Line driver output

Power Vcc

5~30

5~30

5±0.25   5~30

5±0.25 5~30

Current

≤80mA

≤80mA

≤80mA

≤150mA

Load current

40mA

40mA

40mA

60mA

High-level output

Min Vcc*70%

Min Vcc-2.5V

Min Vcc-1.5V

Min 3.4V

Low-level output

Max 0.4V

Max 0.4V

Max 0.8V

Max 0.4V

Rise Time Tr

Max 1us

Max 1us

Max 1us

Max 200ns

Fall  Time Tr

Max 1us

Max 1us

Max 1us

Max 200ns

Max Responding Frequency

300kHz

300kHz

300kHz

300kHz

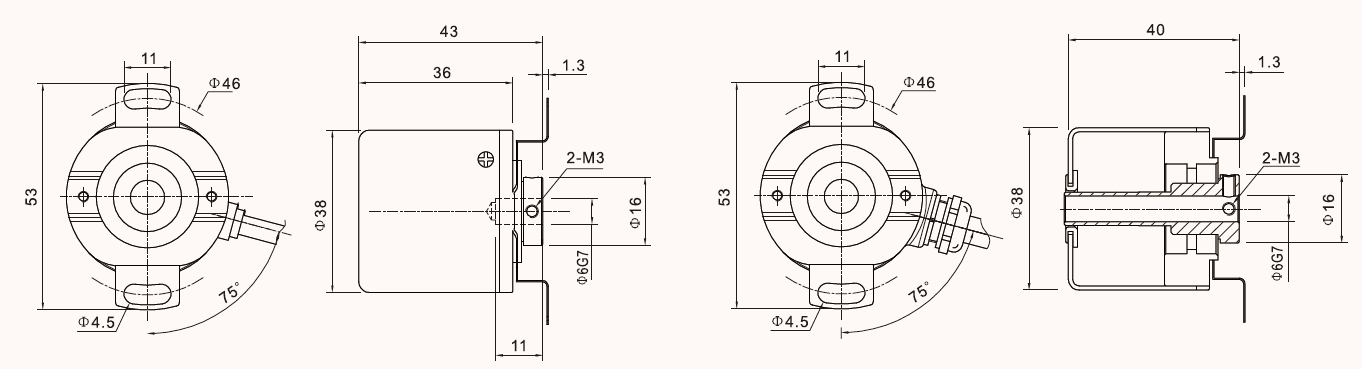

Mechanical Specification

Max speed(r/min)

Starting Torque

Max. Shaft Loading

Shocking

Vibration

6000

<0.05Nm

Radial:50N, Axial:20N

50G/11-ms

10G 10-2000Hz

Rotor  Inertia

Working Temperature

Storage Temperature

Protection Grade

Weight

4*10-8Kgm2

-30~85℃

-35~95℃

IP51

100g

A,B phase absolute angle deviation≤0.2T

T=360°/N (N is the exact number of impulse of each spin )

Signal

A

B

Z

Ā

B(-)

Z(-)

Vcc

GND

Color

Green

White

Yellow

Brown

Gray

Orange

Red

Black
