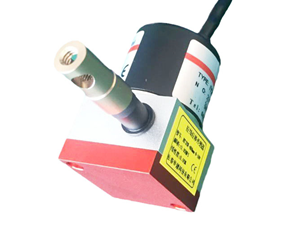

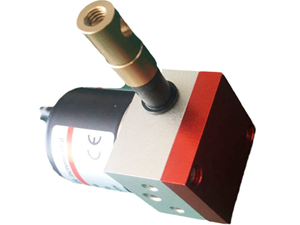

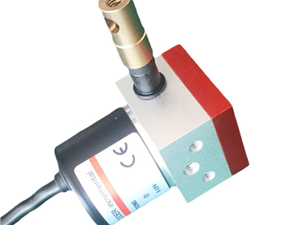

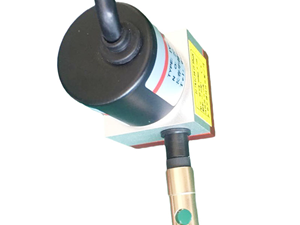

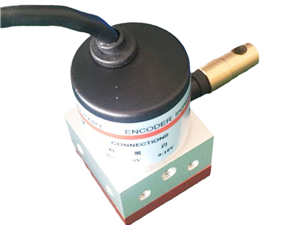

The YMR32M analog output type has a maximum measuring stroke of 400 mm and a hub circumference of 40 mm. The YMR32M series has a fine workmanship, solid and wearable appearance, accurate measurement, suitable for small space installation and short distance measurement.
Feature
A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code.
There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaft making them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typically further processed elsewhere into information such as speed, distance and position.
Application
Rotary encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. speciapurpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and rotating radar platforms.
Mechanical Parameters
|
Measuring Distance |
0 ~ 400mm |
Hub Circumference |
40mm |
|
Shell Material |
Aluminum alloy, surface anodized, wear resistant and corrosion resistant |
Working Life |
More than 2 million times |
|
Steel Wire Rope |
0.6mm Highly flexible, imported plastic coated |
Outlet Cable |
2N ~ 4N |
|
Linear Precision |
0.05%FS |
Repeatability |
0.01% |
|
Resolution |
Infinitely small theory |
Maximum Round Trip Speed |
300mm/s |
Electrical Parameter
|
Output Signal |
0-5V,0-10K,0-5K |
Working Voltage |
10-30V |
|
Response Frequency |
Max.300KHz |
Cable Length |
2m(standard) |
|
Protection |
Anti-missing, with overload |
Outlet Direction |
Radial (standard); Axial |
Environmental Parameters
|
Working Temperature |
-30°~ +90° |
Anti-vibration |
10Hz ~ 1500Hz 10G |
|
Weight |
0.25kg |
IP Grade |
IP54(standard),IP65 |
Mechanical Drawings
Wiring Instructions
|
Cable Color |
Red |
Black |
White |
Shield |
|
4-20mA |
VCC |
Signal |
—— |
G |
|
0-10V,0-5V,0-10K,0-5K |
VCC |
OV |
Signal |
G |
