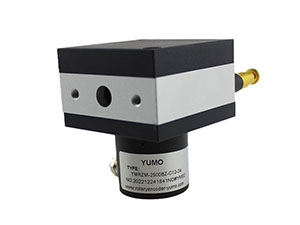

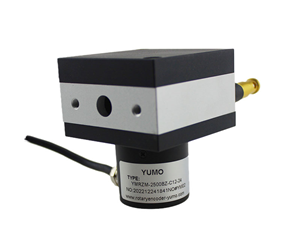

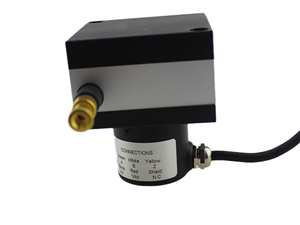

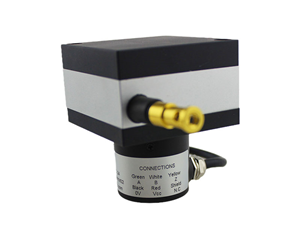

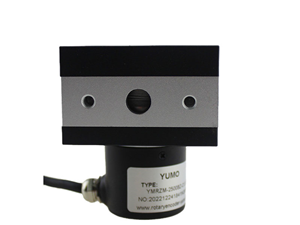

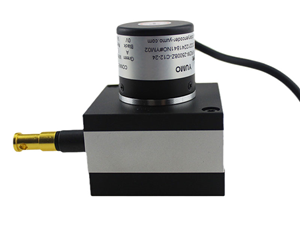

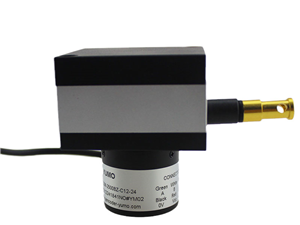

Rope Encoder 2500 Pulses P/R linear Wire Encoder Automatic Control Measurement YMRZM Series
Feature
A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code.
There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaft making them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typically further processed elsewhere into information such as speed, distance and position.
Application
Automatic control, control of transport vehicles, robot, X-Y labor, printing, fork truck, CNC tooling machine and etc.
Rotary encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. speciapurpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and rotating radar platforms.
Linear wire encoder Feature:
1. compact size, rugged construction, easy to install
2. economiccost, and cost savings for customers
3. Various signals output optional: push-pull, TTL, open collectorand so on
4. The cylinders, testing machines and other industry has achieved large-scale applications, reliability
Linear wire encoder Application:
the draw wire displacement sensor is widely used in synchronous jacking, engineering and construction, hydraulic cylinders, lifting machinery and precision instruments industry, is launching add a stainless steel shell, waterproof, dustproof, anti-mud increasedthe degree of protection of the displacement sensor, suitable for use in harsh environmental conditions.
Linear wire encoder Dimension:
Technical Parameter
| Sensor Type | Incremental linear Encoder |
| Wire Rope | 0.6mm high flexible imported plastic coated wire rope |
| Output Model | Open Collector / Push-Pull / Line Drive/ Voltage Output |
| Measuring Range | 0-1000mm |
| Switching Circuit | N/A |
| Zero-point and Full-scales | N/A |
| Linear Accuracy | 0.05%FS |
| Repeatability Accuracy | 0.01% |
| Reasolution(mm) | 0.1/ 0.05 / 0.04 / 0.02/0.008 |
| Max.Reciprocating Speed | 1000m/s |
| Reciprocating Frequence | 50Hz (See Reciprocating Amplitude) |
| Frequency Response | 100kHz-300kHz |
| Power | Based on Output |
| Operating Voltage | Based on Output |
| Wire Extension Force | 4N |
| Weight(kg) | 0.45 |
| Operating Temperature | -30℃-90℃ |
| Life | >10 million times |
| Vibration Resistance | 10Hz-1500Hz 10G |
| Cable Length | Optional |
| Housing Material | Imported aluminium alloy,oxidation surface treating,wear and corrosion prevention |
| Protection Class | IP54(Standard) IP65 |
