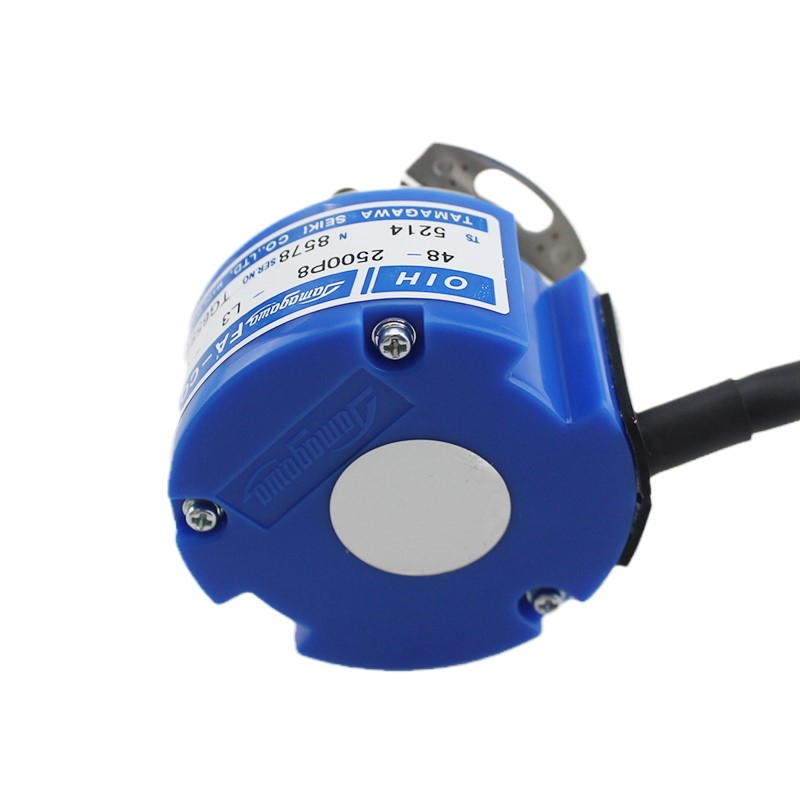

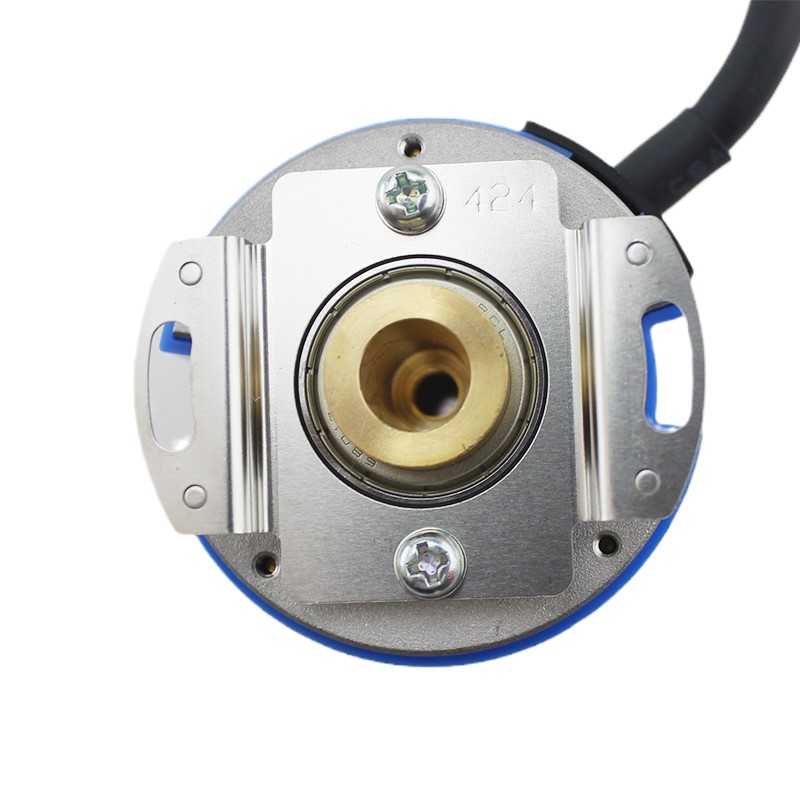

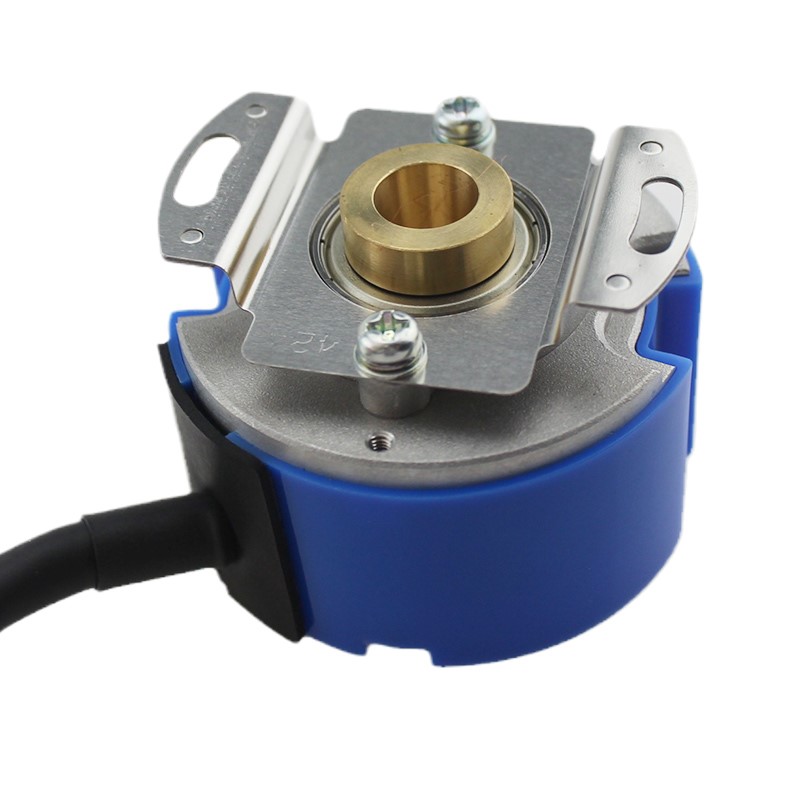

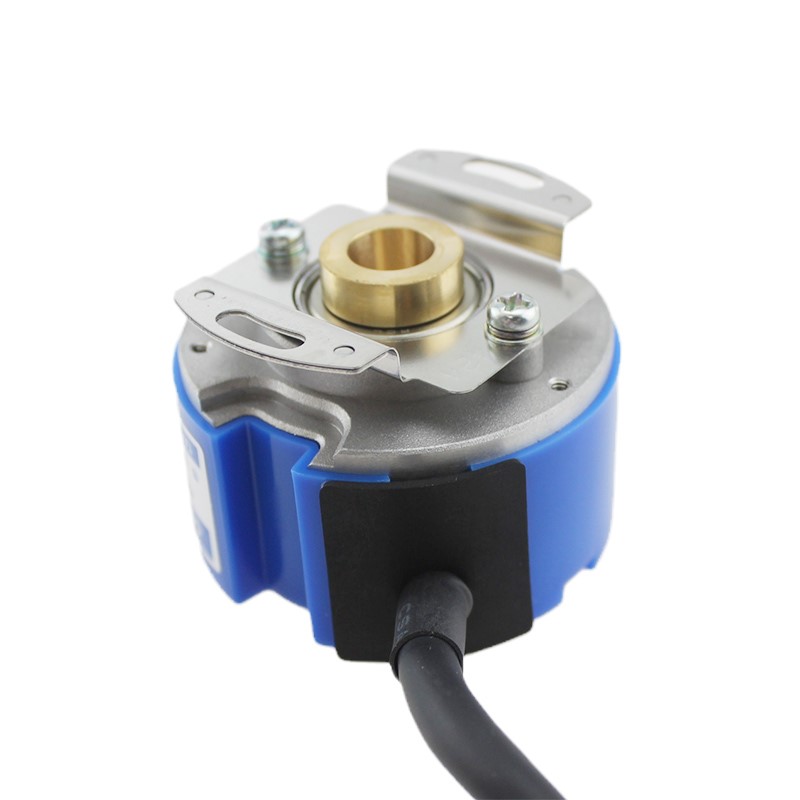

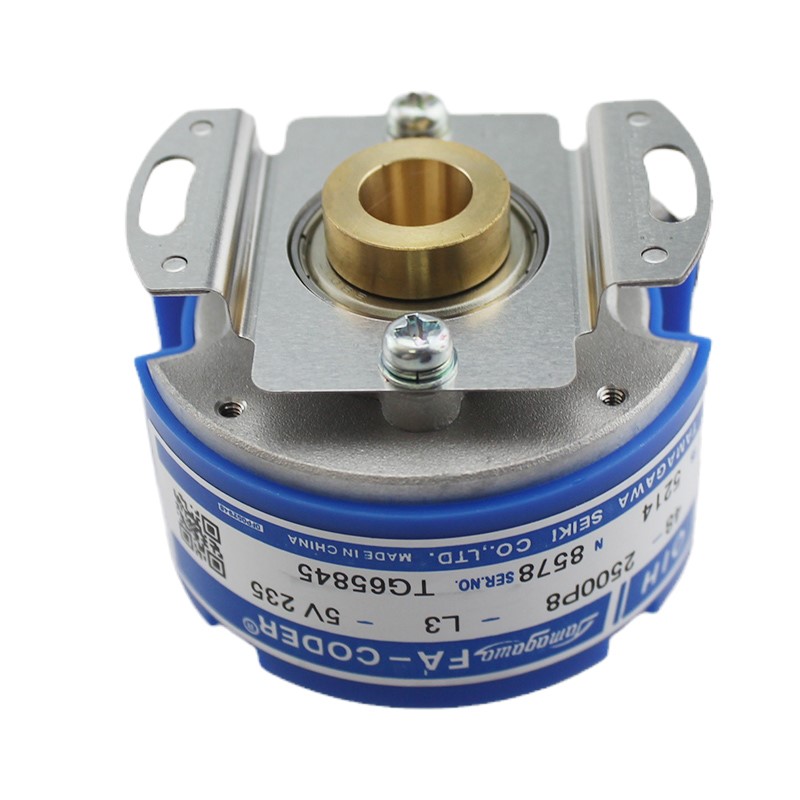

●Outside Diameter: φ 60 mm / Motor Shaft Diameter : φ 20 mm
● Hollow shaft available up to φ 20,Please contact us.
● Resolution : 1,000 ～ 8,192 C/T
● Easy to attach
A Hollow-Shaft Incremental Rotary Encoder, also called a hollow shaft encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code.
There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaftmaking them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typicallyfurther processed elsewhere into information such as speed, distance and position.
*ApplicationRotary encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. speciapurpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and
rotating radar platforms.

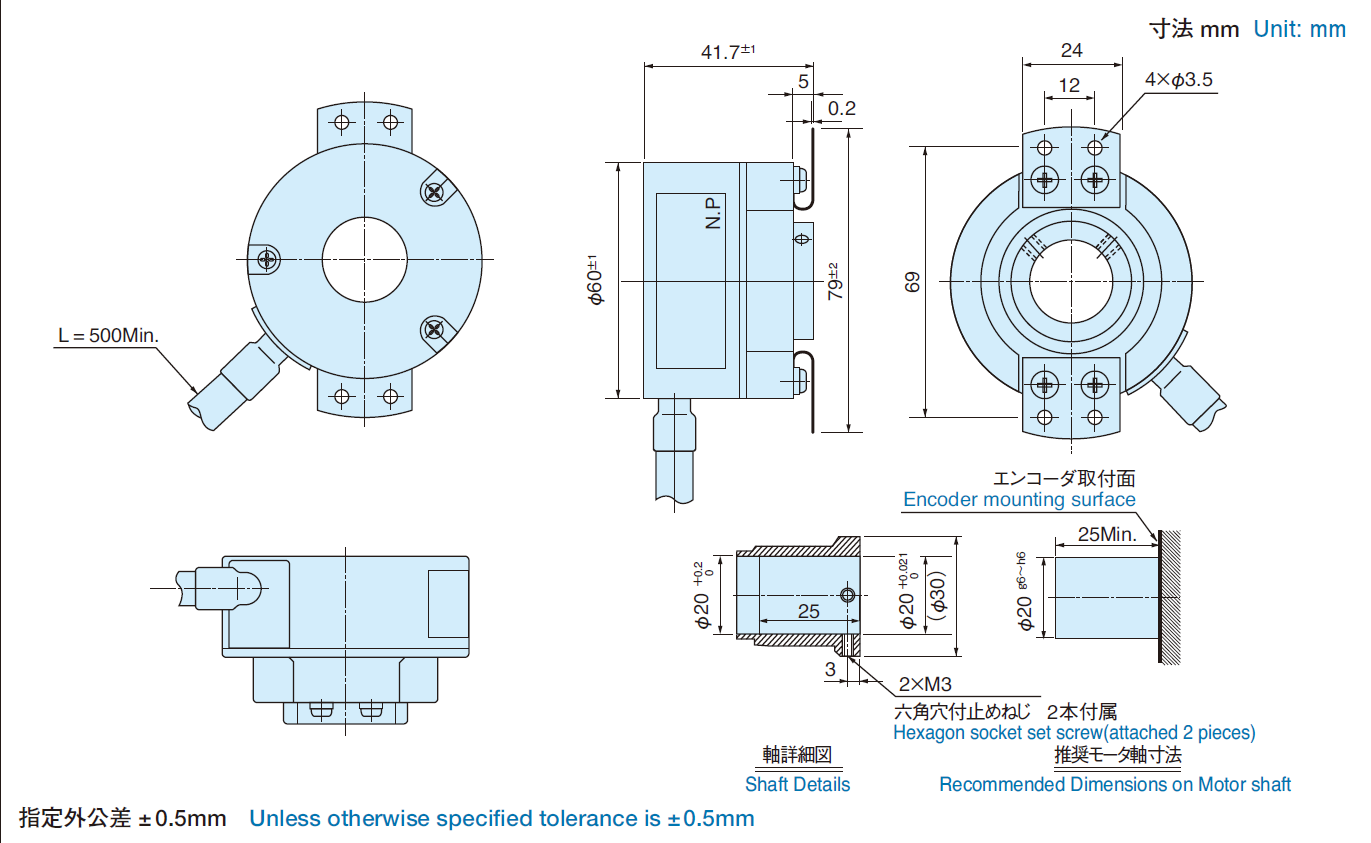

Outline:
|
Resolution |
1,000~8,192 C/T |
|
Output Phase |
A, B, Z. U, V, W Phase |
|
Supply Voltage |
DC+5V±5% |
|
Consumption Curent |
(No load) |
| Output form |
Line Driver |
|
Source Current |
20mA Max |
|
Sink Cument |
20mA Max |
|
Maximum Rcsponse Frequency |
200KHz |
