Application
Automatic control,measurements,robotic X-Y labor and printing machines.

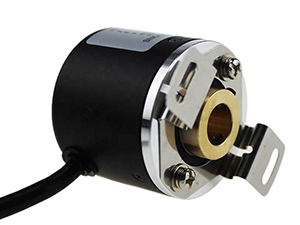

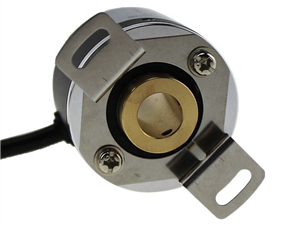

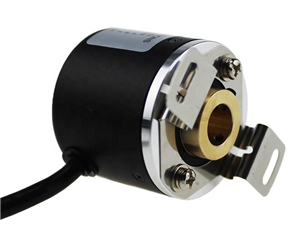

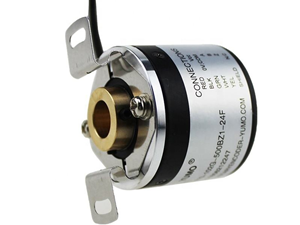

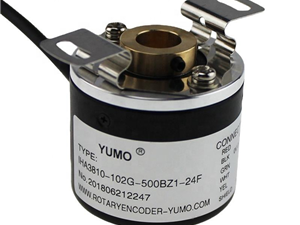

A Hollow-Shaft Incremental Rotary Encoder, also called a hollow shaft encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code.
There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaftmaking them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typicallyfurther processed elsewhere into information such as speed, distance and position.
Features
High reliability,long life,strong anti-interference ability and wide range oftemperature adaption.
Rotary encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. speciapurpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and
rotating radar platforms.
Ordering Information
ELECTRICAL SPEC
output circuit
open collector NPN output
voltage output
push pull output
line driver output
supply voltage
5/26
5/26
5±0.25 5-26
5±0.25 5-26
current consumption
≤80mA
≤80mA
≤80mA
≤150mA
load current
40mA
40mA
40mA
60mA
single high level
min Vcc*70%
min Vcc-2.5V
min Vcc-1.5V
min 3.4V
single low level
Max 0.4V
Max 0.4V
Max0.8V
Max 0.4V
rising time Tr
Max 1us
Max 1us
Max 1us
Max 200ns
declining time Tr
Max 1us
Max 1us
Max 1us
Max 200ns
response frequency
300kHz
300kHz
300kHz
300kHz
MECHANICAL SPEC
number of pulses
starting torque without sealing
Max load permitted on shaft
shock resistance
vibration proof
1024
≤0.05Nm
radial 50N,Axial 20N
50G/11ms
10G 10-2000Hz
rotational inertia
Working temperature
Storage temperature
Protection class
Weight
4x10-8kgm2
under30~85°C
- 35~95°C
IP51
100g
