Feature:

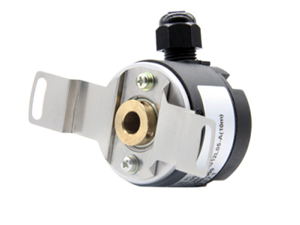

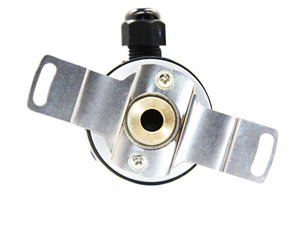

A Hollow-Shaft Incremental Rotary Encoder, also called a hollow shaft encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code.
There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaftmaking them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typicallyfurther processed elsewhere into information such as speed, distance and position.
Application
●Ultra-compact hollow shaft encoder●Outside diameter 45mm, Shaft
diameter 8mm
●Output pulses per revolution 8192
●Suitable for elevator of no engine room
Rotary encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. speciapurpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and
rotating radar platforms.
Detailed Introduction
| Use | Elevator industry | |
| Features | High precision, multiple pole signals | |

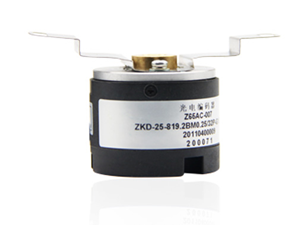

| Series | ［unit］ | ZKD-25 |
| Mechanical parameter |
|
|
| Max. appearance | ［mm］ | φ45*40 |
| Shaft type | hollow shaft | |
| Shaft /aperture | φ［mm］ | Diameter 8 |
| Max. rotate speed | ［r/min］ | 1000 |
|
Max. shaft load Shaft / radial direction |
［N］ | 49/29.4 |
| Operating temperature | ［℃］ | -20～+70 |
| Protection grade | IP40 | |
| Connection type | Connection plate | |
| Max. resolution ratio | ［bit］ | 8192 |
| Electric parameter |
|
|
| Output pattern | Line driver | |
| Supply voltage | DC［V］ | 12 |
| Transmission speed | ［Mbps］ | 100 |
|
|
