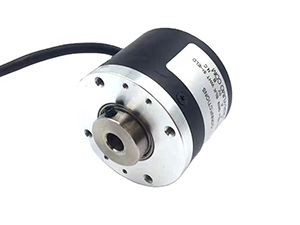

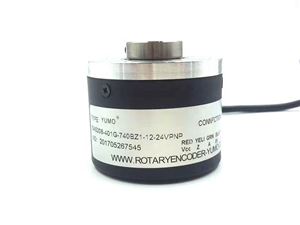

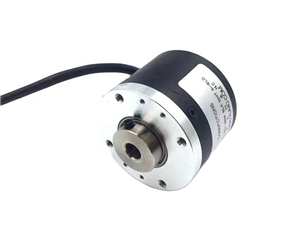

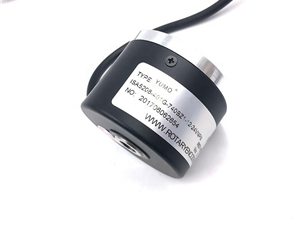

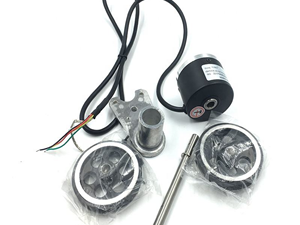

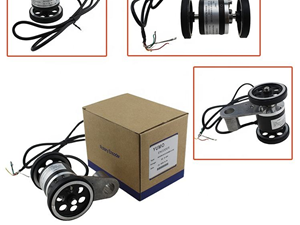

Hollow Shaft Rotary Encoder IP54 740ppr ISA5208 Series with wheel
Feature:
A Hollow-Shaft Incremental Rotary Encoder, also called a hollow shaft encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code.
There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaftmaking them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typicallyfurther processed elsewhere into information such as speed, distance and position.
Application:
Rotary encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. speciapurpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and
rotating radar platforms.
Technical Parameter:
| Property project | Specific parameter |
| Out wave & duty ratio | square wave & 0.5T±0.1T |
| Current Consumption | ≤150mA |
| Response frequency | 0-100KHz |
| Max.permissible revolution | 5000rpm |
| Moment of inertia | 3.5*10-6Kg.m2 |
| Starting torque | 1.5*10-3Nm |
| Shaft loading | Radical:35N / Thrust :25N |
| IP rating | IP54 |
| Operate & Stock temperature | -30C-80C / -40C-100C |
| Ambient humidity | 30-85%(with no condensation) |
| Power supply | DC+5V±5% / +5-12V / +12-24V |
| Shock resistance | 980m/s2,6ms,2 times each in X,Y,Z directions |
| Vibration resistance | 50m/s2,10-200Hz,2 times each in X,Y,Z directions |
| Operating life | MTBF≥25000h (+25C,2000rpm) |
| Output voltage | Vh≥85% Vcc,Vi≤0.3V |
| Weight | 0.17kg |
