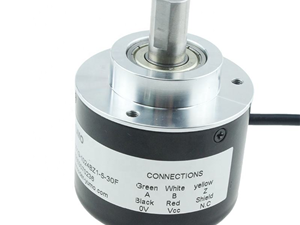

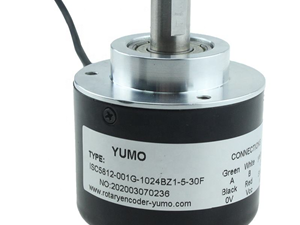

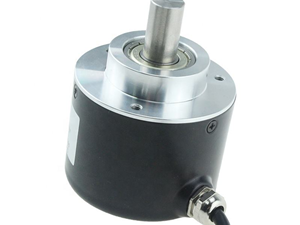

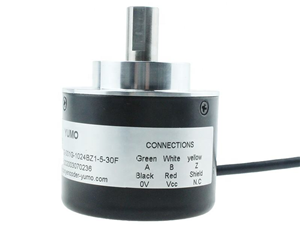

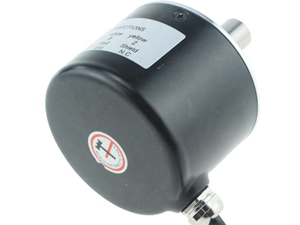

Solid Shaft Rotary Encoder 58mm 12mm shaft diameter 1024PPR ABZ Phase Incremental encoder

Inquiry

Product details




 Mechanical Specification
Max speed(r/min) Starting Torque Max. Shaft Loading Shocking Vibration
6000 <0.05Nm Radial:20N, Axial:10N 50G/11ms 10G 10-2000Hz
Rotor  Inertia Working Temperature Storage Temperature Protection Grade Weight
4*10-8Kgm2 -30~85℃ -35~95℃ IP51 270g
