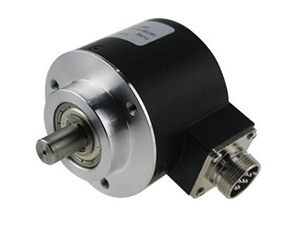

ISC5810 Series Solid-Shaft Incremental Rotary Encoder

Application

Automatic control , control of transportvehicles, robot, X-Y labor ,printing, fork truck , CNC tooling machine and etc.

Solid shaft rotary encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. Specia purpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and rotating radar platforms.

Features

High reliability, long life, strong anti-interference ability

2 quadrature output channel (A&B) + index signal

Square flange be used in numerical control machine

A Solid-Shaft Rotary Encoder, also called a solid shaft encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code.

There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaftmaking them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typically further processed elsewhere into information such as speed, distance and position.

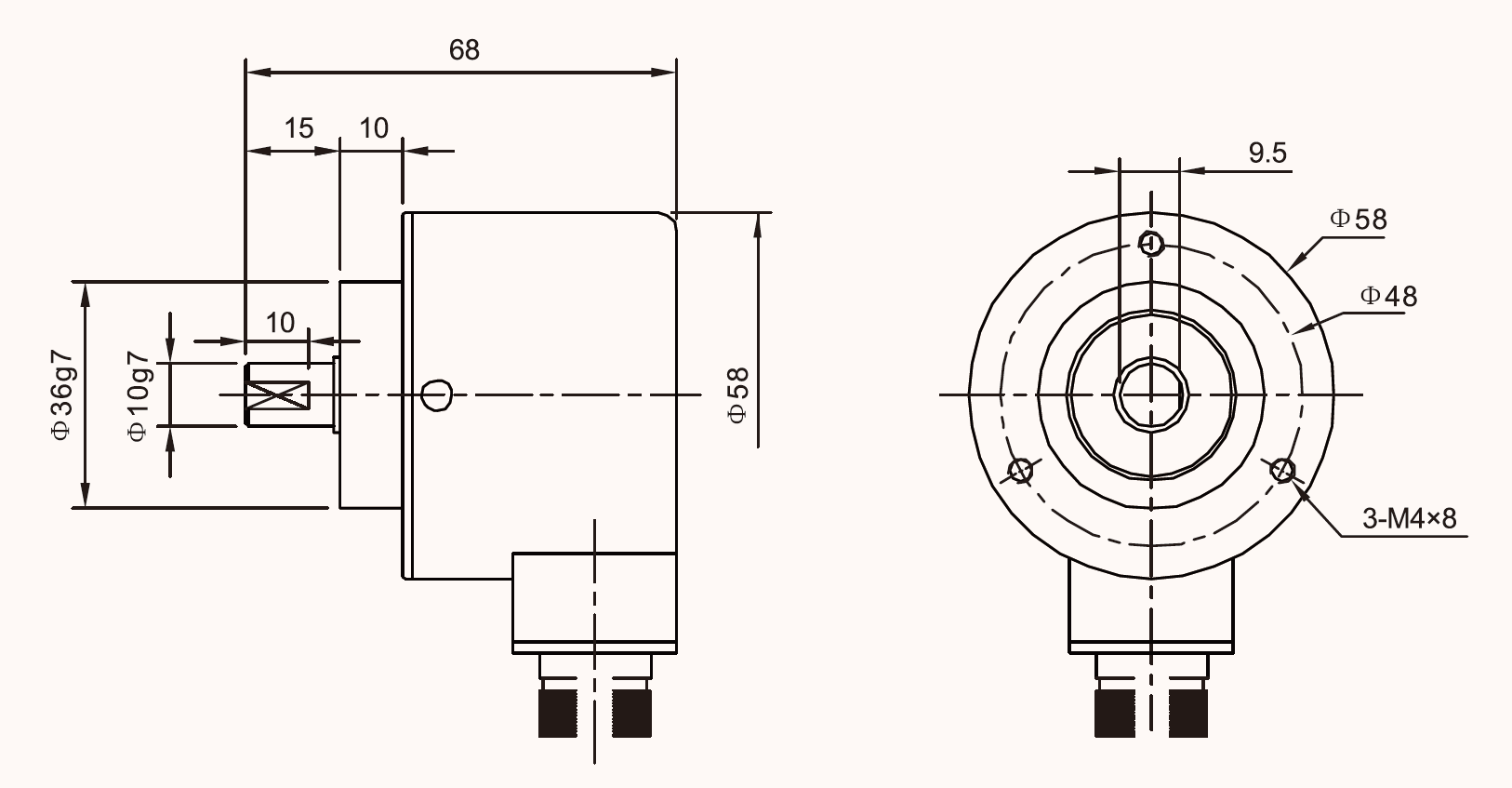

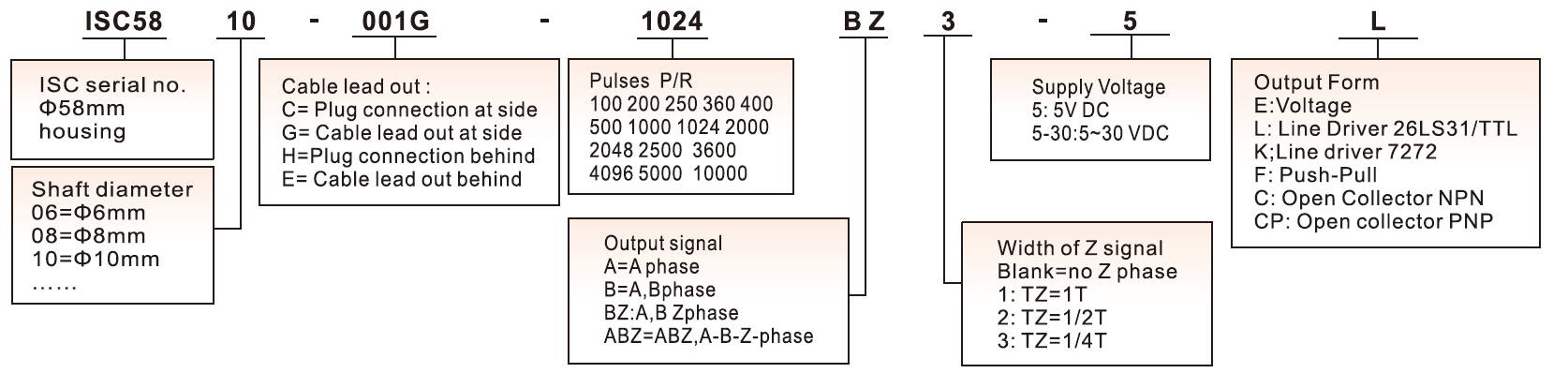

Ordering Information

Note

1, Please contact sales representative to confirm the correctness and availability of the part number

Technical Specifications

Electrical Specification
Output circuit	Open collector	Voltage output	Push pull output	Line driver output
Power Vcc	5~30	5~30	5±0.25 5~30	5±0.25 5~30
Current	≤80mA	≤80mA	≤80mA	≤150mA
Load current	40mA	40mA	40mA	60mA
Max Responding Frequency	300kHz	300kHz	300kHz	300kHz
Mechanical Specification
Max speed(r/min)	Starting Torque	Max. Shaft Loading	Shocking	Vibration
6000	<0.05Nm	Radial:20N, Axial:10N	50G/11ms	10G 10-2000Hz
Rotor Inertia	Working Temperature	Storage Temperature	Protection Grade	Weight
4*10-8Kgm2	-30~85℃	-35~95℃	IP51	270g
