Application
Used in area of automatic control, measurements, robotic X-Y labor and printing and packing.
Features
High reliability, long life, strong anti-interference ability and wide range of temperature adaption.
Multiple ways of wiring connection.

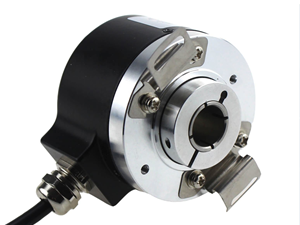

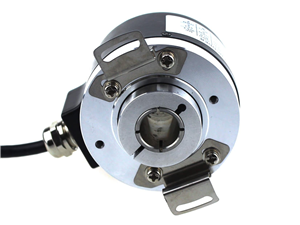

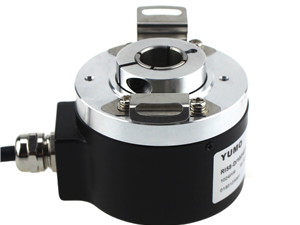

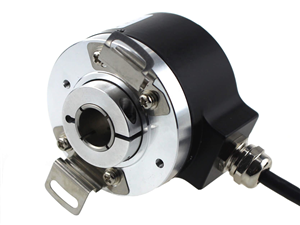

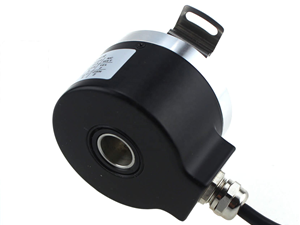

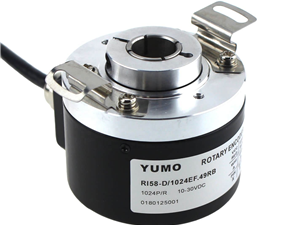

| Model NO. | RI58-D/1024EF.49RB |
| Supply Voltage | 5-24VDC |
| Output form | Line Driver 7272 |
| Output singal | ABZ,A-B-Z phase |
| Pulses | 1024 P/R |
| Cable lead out | Cable lead out at side |
| Protection grade | IP50 |
| Housing diameter | 60mm |
| Hollow diameter | 14mm |
Ordering Information
Note
Please contact sales representative to confirm the correctness and availability of the part number.
Technical Specifications
|
Electrical Specification |
||||
|
Output circuit |
Open collector |
Voltage output |
Push pull output |
Line driver output |
|
Power Vcc |
5~30 |
5~30 |
5±0.25 5~30 |
5±0.25 5~30 |
|
Current |
≤80mA |
≤80mA |
≤80mA |
≤150mA |
|
Load current |
40mA |
40mA |
40mA |
60mA |
|
High-level output |
Min Vcc*70% |
Min Vcc-2.5V |
Min Vcc-1.5V |
Min 3.4V |
|
Low-level output |
Max 0.4V |
Max 0.4V |
Max 0.8V |
Max 0.4V |
|
Rise Time Tr |
Max 1us |
Max 1us |
Max 1us |
Max 200ns |
|
Fall Time Tr |
Max 1us |
Max 1us |
Max 1us |
Max 200ns |
|
Max Responding Frequency |
300kHz |
300kHz |
300kHz |
300kHz |
|
Mechanical Specification |
||||
|
Max speed(r/min) |
Starting Torque |
Max. Shaft Loading |
Shocking |
Vibration |
|
6000 |
<0.12Nm |
Radial:85N, Axial:50N |
50G/11-ms |
10G 10-2000Hz |
|
Rotor Inertia |
Working Temperature |
Storage Temperature |
Protection Grade |
Weight |
|
4*10-8Kgm2 |
-30~85℃ |
-35~95℃ |
IP50 |
300g |
Connection Table
|
Signal |
A |
B |
Z |
A(-) |
B(-) |
Z(-) |
Vcc |
GND |
|
Color |
Green |
White |
Yellow |
Brown |
Gray |
Orange |
Red |
Black |
