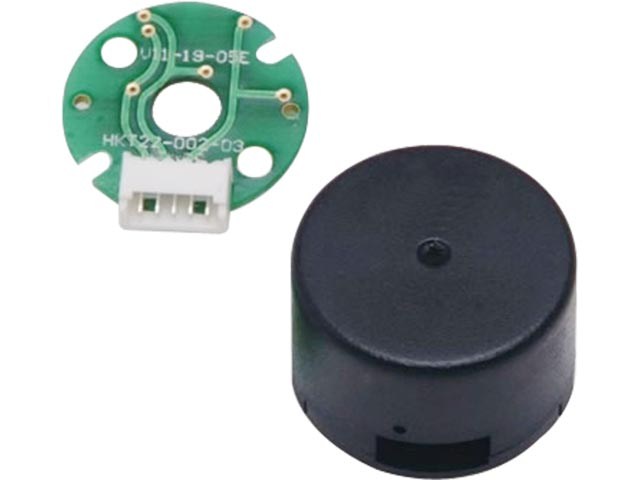

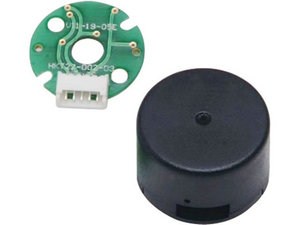

HKT2204 Series 2 ChannelsHollowShaft Incremental Encoder

Application

Motorized spindle , DC Motor , Servo motor

Motor encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. speciapurpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and

rotating radar platforms.

Features

2 Channels quadratureoutput , quick and easy assembly

Cost-effective , ideal for small motor system

A motor encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code.

There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaftmaking them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typically further processed elsewhere into information such as speed, distance and position.

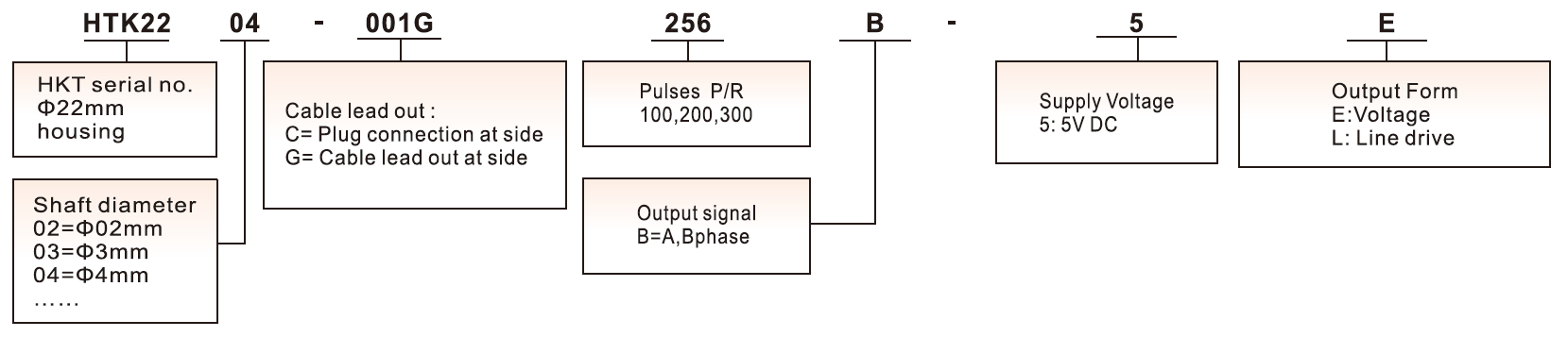

Ordering Information

Note

1, Please contact sales representative to confirm the correctness and availability of the part number

2, Line Drive is only available with 5V DC option

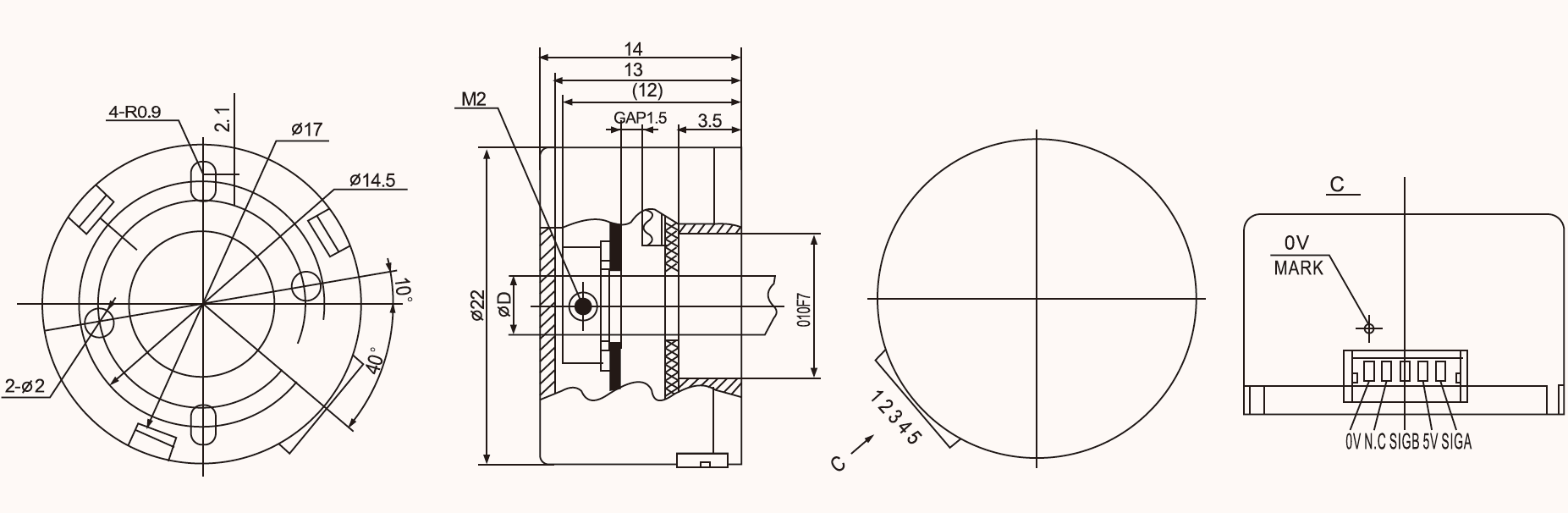

Technical Specifications

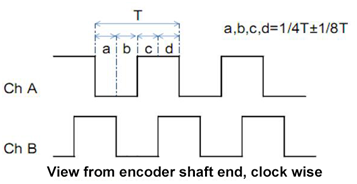

Electrical Specification
Output circuit	Voltage output
Power Vcc	5VDC
Current Consumption	≤35mA
High-level output	Min Vcc*85%
Low-level output	Max 0.3V
Rise Time Tr	Max 200ns
Fall Time Tr	Max 50ns
Max Responding Frequency	100kHz
Mechanical Specification
Max speed(r/min)	Starting Torque	Max. Shaft Loading	Shocking	Vibration
12000	<0.05Nm	Radial:25N, Axial:15N	50G/11ms	10G 10-2000Hz
Rotor Inertia	Working Temperature	Storage Temperature	Protection Grade	Weight
4*10-8Kgm2	-40~85℃	-40~85℃	IP50	100g
