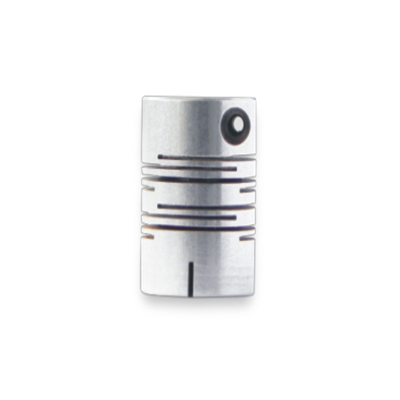

Clamping LT encoder coupling

◆introduction

Flexible couplings are offered in the industrys largest variety of stock bore/keyway combinations. These couplings require no lubrication and provide highly reliable service for light, medium, and heavy duty electrical motor and internal combustion power transmission applications. Applications include power transmission to industrial equipment such as pumps, gear boxes, compressors, blowers, mixers, and conveyors.

◆Applications

1. Widely used in various mechanical and hydraulic fields

2. Small dimension, low weight, high transmitted torque

3. Elastomers made of polyurethane with shore hardness between 80-98

4. Compensating the axial relative drift, buffer and vibration reduction

5. Material: cast iron, steel and aluminum alloy

d1	d2	D	L	L1	g	M
d1	d2	D	L	L1	g	M
6	6	20	25
8	8	20	25
6	8	20	25
6	6	25	30
12	12	25	30
6	12	25	30
8	8	30	35
16	16	30	35
8	16	30	35
8	8	35	40
20	20	35	40
8	20	35	40
10	10	40	45
26	26	40	45
10	26	40	45
