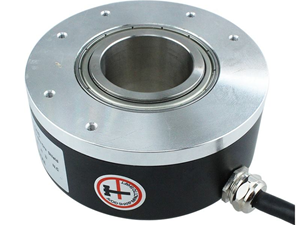

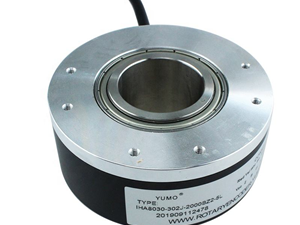

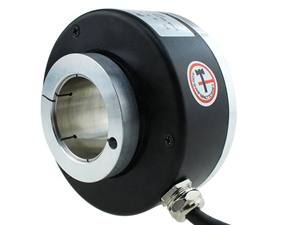

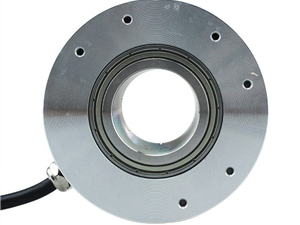

Hollow Shaft Incremental Rotary Encoder OD 80mm ID 30mm 2000 P/R IP50

Series: IHA8030 Series

Hollow shaft encoder, axis inside diameter30mm, (28mm, 6.25mm, on order), housing diameter 80mm.
With flex bracket flange, easy for installing, light weight, stable output.Rugged and extremely thin hollow shaft encoder for extension on power motors.


Power motors and three phase current motors with frequency transformation, system construction, elevator systems.
Output waveform:90 output phase difference, CW rotation( CW rotation as seen from fit surface)

Square-wave accuracy:Pitch error of peridor: ±0.01T
Pitch error of phase position: ≤1/18T
Z phase of pulses: T=360°/N (N: output pilses)
Signal accuracy: Xn=1/4T±1/12T(n=1,2,3,4)
A leads B clockwise when viewing the encoder shaft end.
The position of Z phase against A,B phase is not specified




Output wave

Square wave

output signais

A,B,Z(Line driver output A,A,B,B,Z,Zphase)

current consumption


output phase difference


supply voltage

5V DC,5-12V DC,12-24V DC

signal level


Number of pluese

150,600,1024,1200,2500,3000 (other number of pluse avaliable on request)

output circuit

push pull,line driver, voltage



Speed without sealing


Rotor moment of inertia


Starting torque without sealing


Macdimum loag permatted on shaft

Radial 40N, Axial 30N

Shock resistance

980m/s 6ms,2times each on XYZ

Vibration proof

50m/s2,10-200Hz,2 hours each on XYZ

Working life

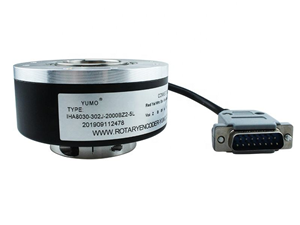

Appr,370g(15 pin rectangle plug radial)



Working humidity

30-85%(No condensation)

Storage temperature


Working temperature


Protection class
