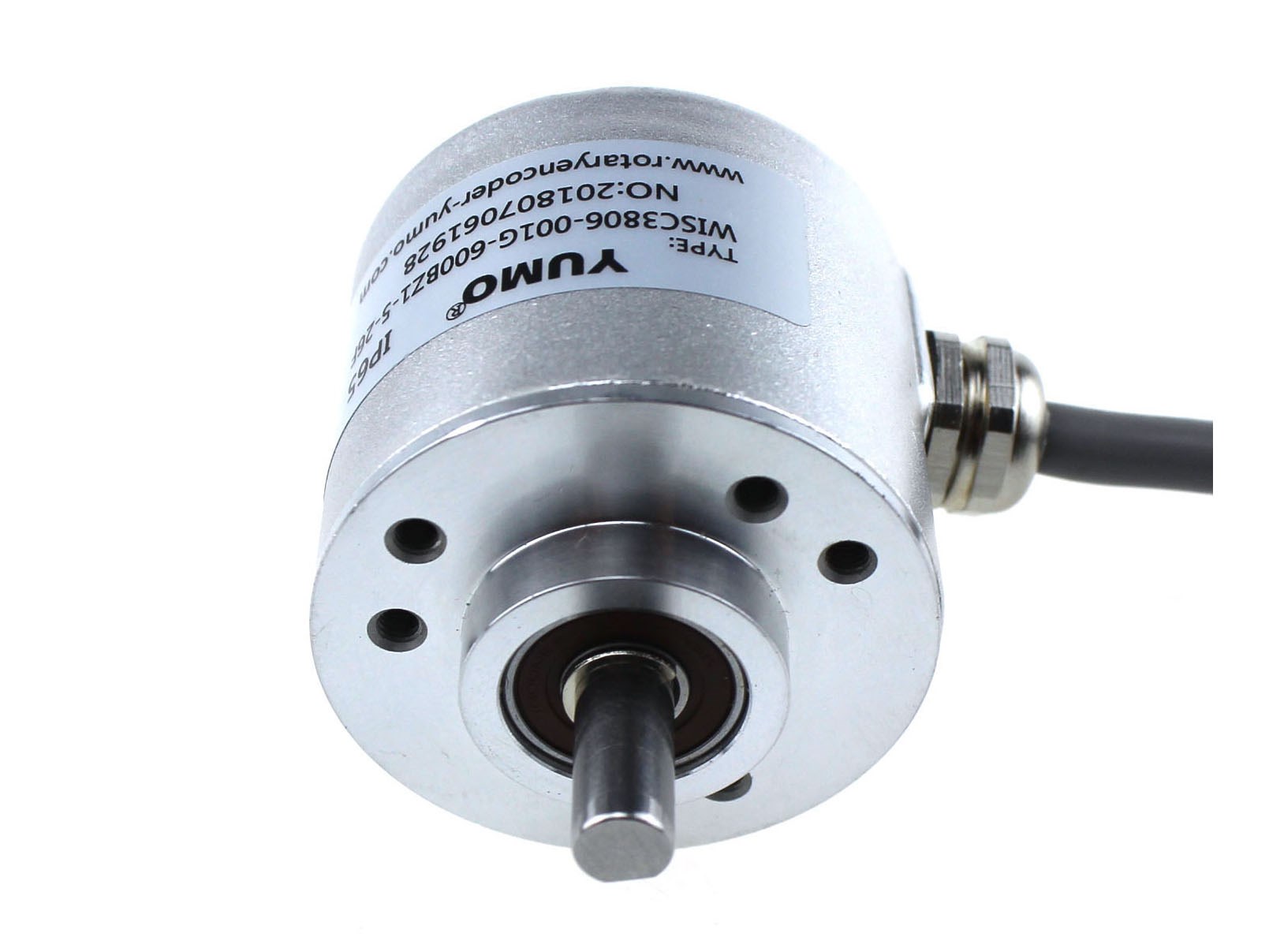

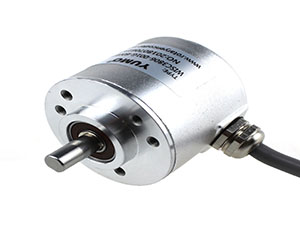

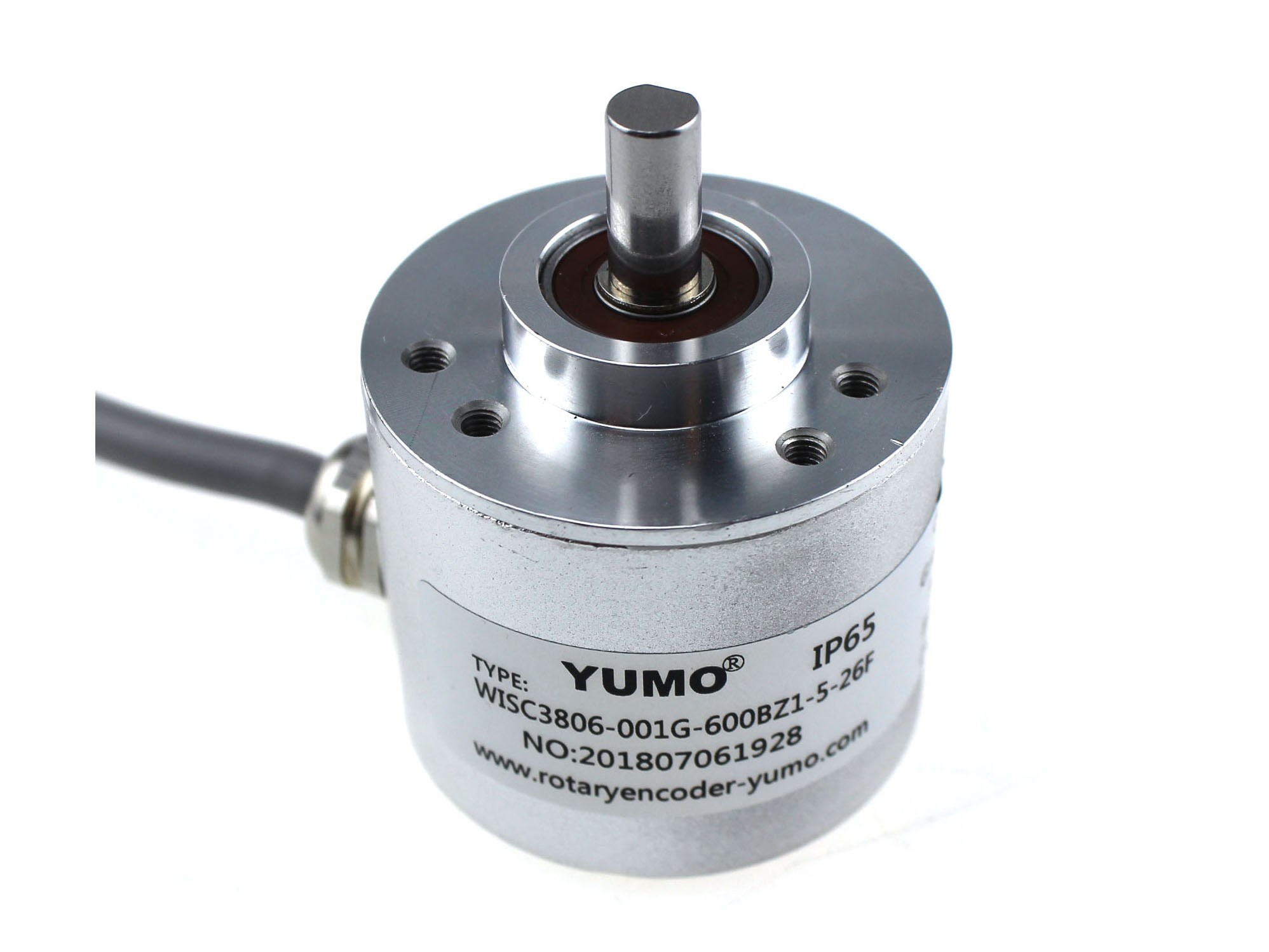

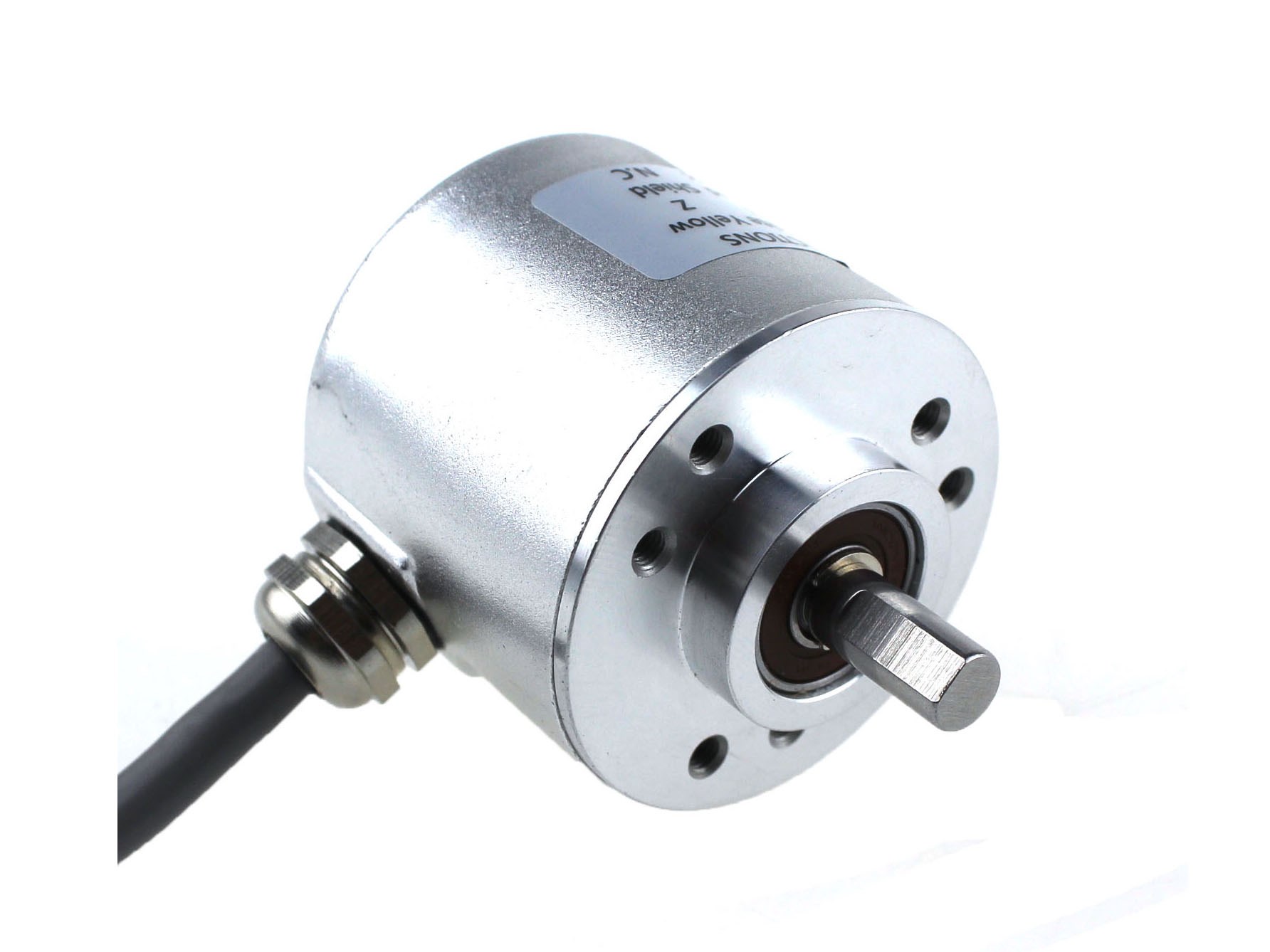

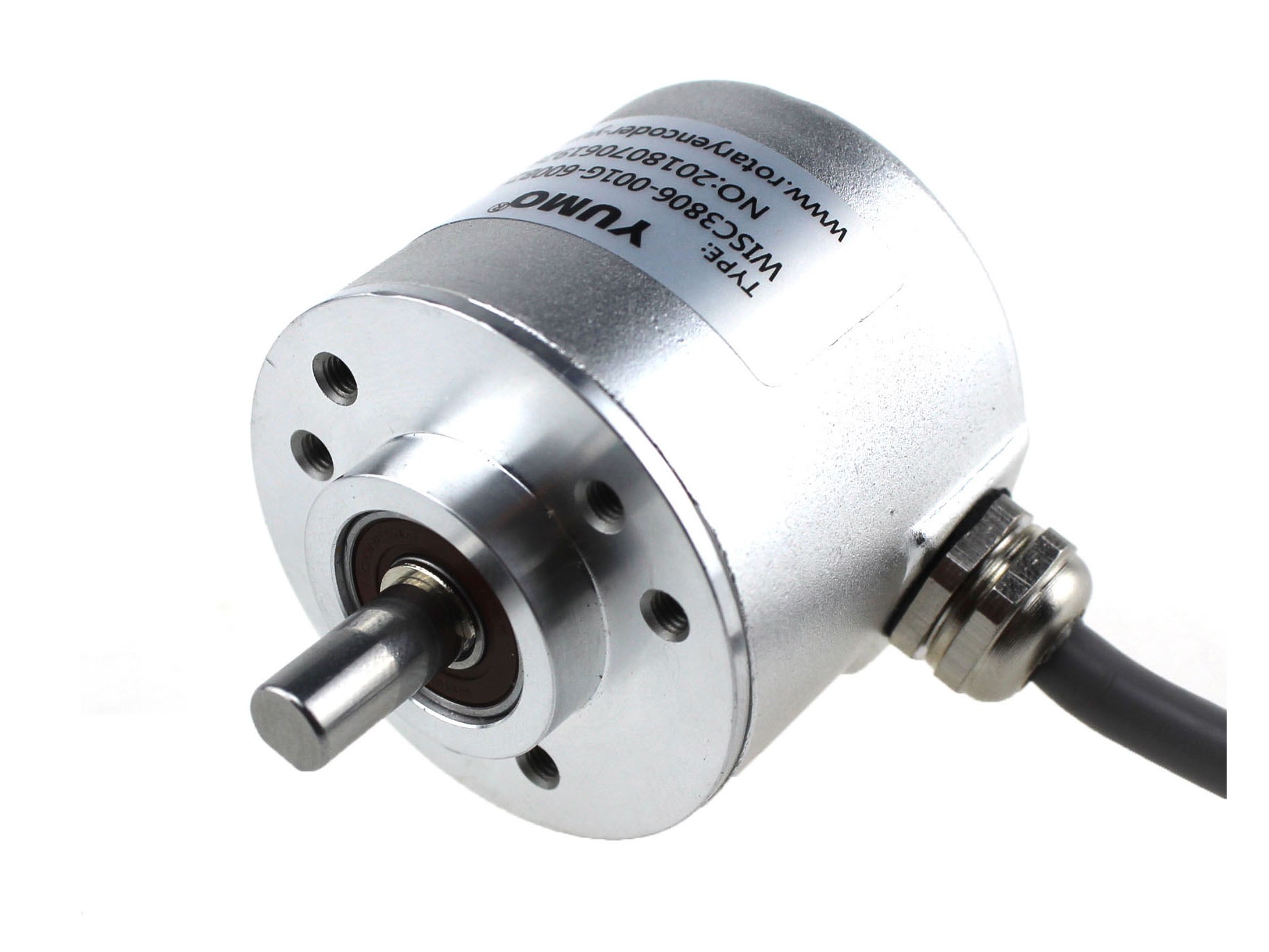

WISC3806 IP65 waterproof rotary encoder
Features
Miniature size, easy assembling
2 quadrature output channel (A&B) + index signal
WISC3806 SERIES
Shaft diameter 6mm or 8mm,clamping flange,housing diameter 38mm.
Good price at high performance,small volume,light weight,easy for installing
|
Property project |
Specific parameter |
|
Out wave & duty ratio |
square wave & 0.5T±0.1T |
|
Current Consumption |
≤100mA |
|
Response frequency |
0-100KHz |
|
Supply voltage |
5V DC,5-12V DC,12-24V DC |
|
Max.permissible revolution |
2000rpm |
|
Output |
ABZ |
|
Pulse |
1-1024ppr |
|
|
|
|
IP rating |
IP65 |
|
Operate & Stock temperature |
-20-55ºC / -20-60 ºC |
|
Ambient humidity |
30-85%(with no condensation) |
|
Shock resistance |
980m/s2,6ms,2 times each in X,Y,Z directions |
|
Vibration resistance |
50m/s2,10-200Hz,2 times each in X,Y,Z directions |
|
Operating life |
MTBF≥25000h (+25C,2000rpm) |
|
Output voltage |
Vh≥85% Vcc,Vi≤0.3V |
|
Weight |
0.2kg |
|
Protection class |
IP65 |
