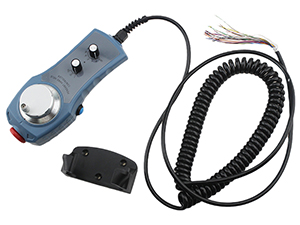

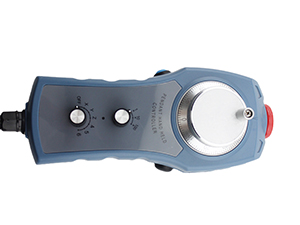

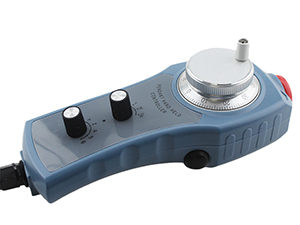

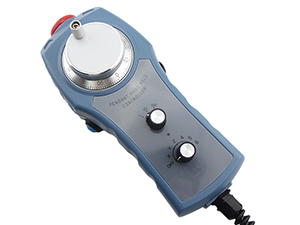

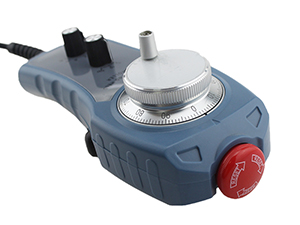

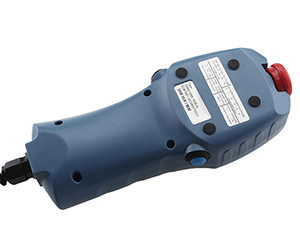

Product Description:
The Machine Manual Pulse Generator is an essential tool for any business looking to improve the accuracy and precision of their machines. With its intuitive design and easy-to-use interface, this versatile device provides precise and reliable control of machine movements, ensuring maximum efficiency and productivity.
Features:
- Available in a variety of sizes and configurations
- Intuitive design for easy installation and use
- Suitable for a wide range of applications
- Robust construction for long-lasting performance
- Provides precise and reliable control of machine movements
A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code.
There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaft making them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typically further processed elsewhere into information such as speed, distance and position.
Benefits:
- Improves accuracy and precision
- Reduces downtime and maintenance costs
- Ensures safety for employees and equipment
- Increases productivity and profitability
- Provides real-time data for informed decision-making
Applications:
- CNC machines and machine tools
- Robotics and automation systems
- Material handling and conveyors
- Printing presses and paper converting equipment
- And more!
Rotary encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. speciapurpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and rotating radar platforms.
Electrical Specification
Output circuit
Open collector
Voltage output
Push pull output
Line driver output
Power Vcc
5~30
5~30
5±0.25 5~30
5±0.2512V
Current
≤100mA
≤100mA
≤100mA
≤120mA
Load current
40mA
40mA
40mA
60mA
High-level output
Min Vcc*70%
Min Vcc-2.5V
Min Vcc-1.5V
Min 3.4V
Low-level output
Max 0.4V
Max 0.4V
Max 0.8V
Max 0.4V
Rise Time Tr
Max 1us
Max 1us
Max 1us
Max 20ns
Fall Time Tr
Max 1us
Max 1us
Max 1us
Max 20ns
Max Responding Frequency
20kHz
20kHz
20kHz
20kHz
Mechanical Specification
Max speed(r/min)
Working Temperature
Storage Temperature
Protection Grade
Weight
600
-25~70℃
-30~85℃
IP50
750g
Upgrade your business and take control of your operations with the Machine Manual Pulse Generator. Our versatile device is designed to provide precise and reliable control of machine movements, ensuring maximum efficiency and productivity. Contact us today to learn more about our wide range of Machine Manual Pulse Generator solutions.
