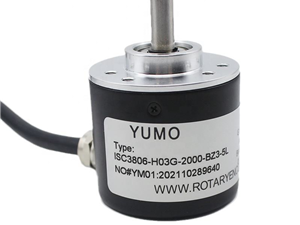

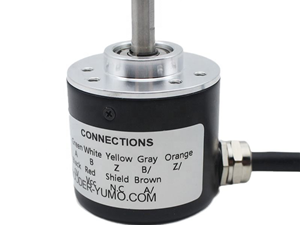

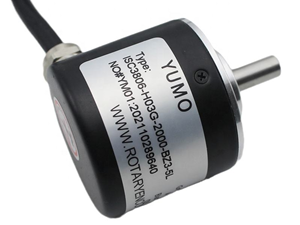

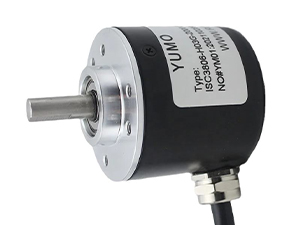

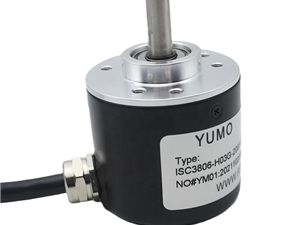

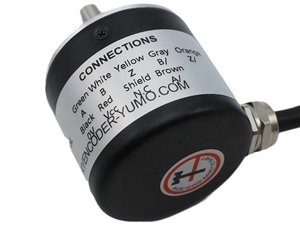

ISC3806 Optical Encoder
Product Description
Shaft diameter 6 mm ¦ or 8 mm ¦, clamping flange, housing diameter 38 mm ¦.
Low price at high performance, small volume, light weight, easy for installing
Optical encoder Applications.
Measure the distance, stop dog positioning,
Curtained door, textile machinery
Feature:
A Solid-Shaft Rotary Encoder, also called a solid shaft encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code.
There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaftmaking them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typically further processed elsewhere into information such as speed, distance and position.
Application:
Solid shaft rotary encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. Specia purpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and rotating radar platforms.
1. ELECTRICAL SPECIFICATIONS
A). Output wave: Square wave
B). Output signals: A, B, Z, (Line driver output A, A, B, B, Z, Z phase)
C). Current consumption: d120mA
D). Response Frequency: 0~100KHz
E). Output phase difference: 90*
F. ) Supply voltage: 5V DC, 5-12V DC, 12-24V DC
G). Signal leve: LVHe85%Vcc, VLd0.3V
H). Number of pulses: 10, 15, 20, 30, 40, 50, 60, 100, 120, 125, 150, 180, 200, 240, 250, 256, 300, 360, 400, 480, 500, 512, 600, 720, 740, 800, 900, 960, 1000, 1024, 1200, 1250, 1440, 1500, 1800, 2000, 2048, 2500(Other number of pulse available on request)
I). Output circuit: Open collector NPN, Push pull, Line driver, Voltage
2. MECHANICAL SPECIFICATIONS
A). Speed without sealing: 5000rmp
B). Rotor moment of inertia: Appraisal 4.5x10-6Kgm2
C). Starting torque without sealing: d1.5x 10-3Nm (+25*C)
D). Maximum load permitted on shaft: Radial: 20N; Axial: 10N
E). Shock resistance: 980m/s2, 6ms, 2 times each on XYZ
F). Vibration proof: 50m/s2, 10~200Hz, 2 hours each on XYZ
G). Working life: MTBFe25000h (+25*C, 2000rpm)
H). Weight: Appraisal: 130g (with 1 meter cable)
3. ENVIRONMENTAL SPECIFICATIONS
A). Working humidity: 30~85% (No condensation)
B). Storage temperature: -40*C~100*C
C). Working temperature: -25*C~85*C
D). Protection class: IP54
|
Use |
Measure the distance,automatic control |
|
Theory |
2 quadrature output channel AB +index signal |
|
Output |
line drive output |
|
Description |
solid shaft encoder |
|
Theory |
Optical sensor |
|
Series name |
ISC3806 |
|
supply voltage |
5-12VDC |
|
pulses number |
512 p/r |
|
Housing size |
38mm |
|
Output circuit |
open collector NPN |
|
shaft size |
6mm |
|
application for |
Textile, stop dog positioning , curtained door |
|
Certificate |
CE |
|
Name |
optical encoder |
