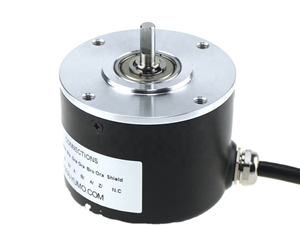

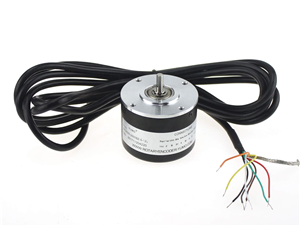

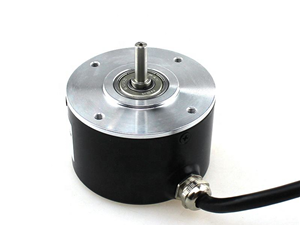

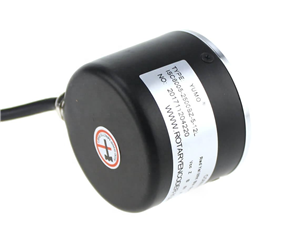

Solid Shaft Optical Rotary Encoder ISC6005 60MM Φ5MM MAX 5000 RPM IP54 Factory Pricee
1. Features of Shaft Incremental rotary encoder (ISC6005) :
Have small volume, weight is light, installit conveniently, the interchangeability is good, the work life is long.
- External diameter φ 60, the hole of the axle 30mm, the fixture mouth 5mm, side cable entry.
- Adapt to the roboticized field.
- No. Of pulse: 100, 120, 125, 150, 180, 200, 250, 256, 256, 300, 360, 400, 500, 512, 600, 900, 1000, 1024, 1200, 1800, 2000, 2048, 2400, 2500, 3000, 3600 (other PR can be indicated when order)
- Shaft Incremental Rotary encoder DC 5~24V
- Output: NPN, PNP open collector, voltage, push pull and linedreiver.
-
Application:
Solid shaft rotary encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. Specia purpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and rotating radar platforms.
2.Technical Specification
| Property project | Specific parameter |
| Out wave & duty ratio | square wave & 0.5T±0.1T |
| Current Consumption | ≤150mA |
| Response frequency | 0-100KHz |
| Max.permissible revolution | 5000rpm |
| Moment of inertia | 3.5*10-6Kg.m2 |
| Starting torque | 1.5*10-3Nm |
| Shaft loading | Radical:35N / Thrust :25N |
| IP rating | IP54 |
| Operate & Stock temperature | -30C-80C / -40C-100C |
| Ambient humidity | 30-85%(with no condensation) |
| Power supply | DC+5V±5% / +5-12V / +12-24V |
| Shock resistance | 980m/s2,6ms,2 times each in X,Y,Z directions |
| Vibration resistance | 50m/s2,10-200Hz,2 times each in X,Y,Z directions |
| Operating life | MTBF≥25000h (+25C,2000rpm) |
| Output voltage | Vh≥85% Vcc,Vi≤0.3V |
| Weight | 0.3kg |
