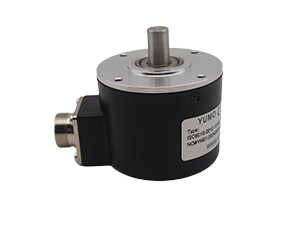

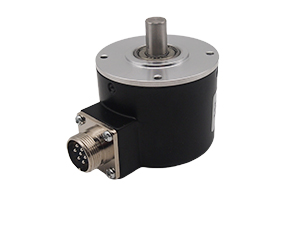

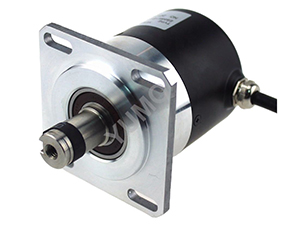

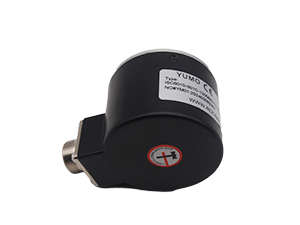

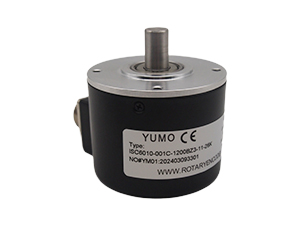

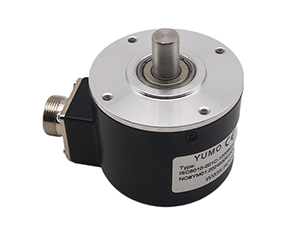

The Solid Shaft Encoder is a high-precision feedback device that provides accurate and reliable information on the speed and position of rotating shafts. With its solid shaft design, this encoder is ideal for a wide range of industrial and commercial applications, including CNC machines, printing presses, and industrial automation.

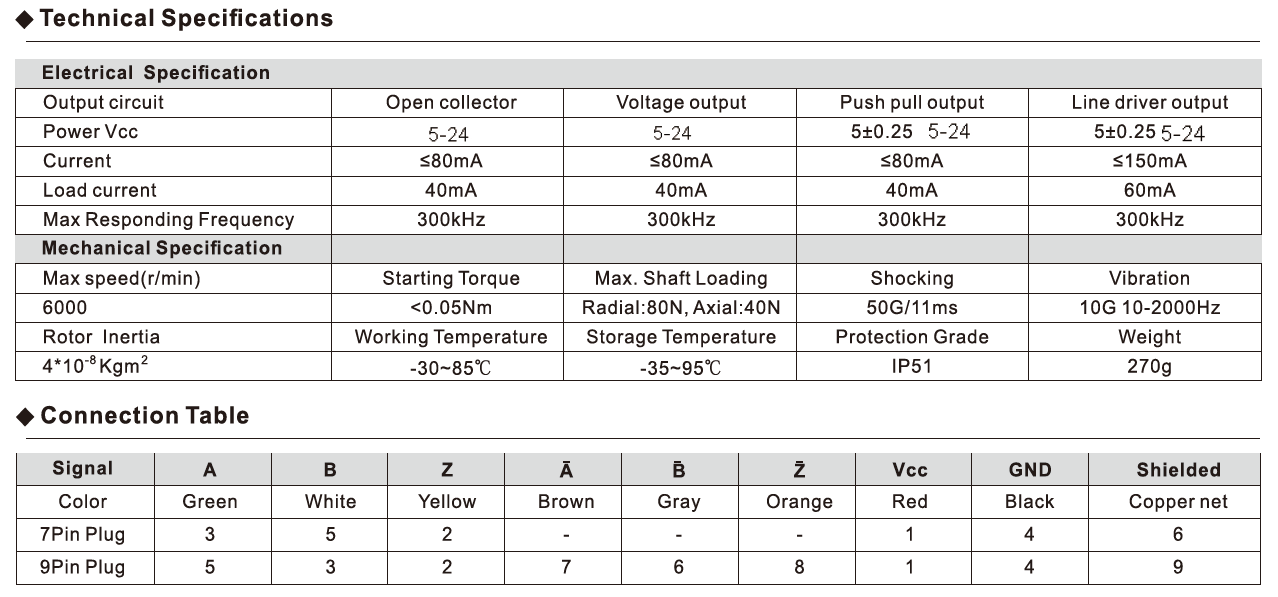

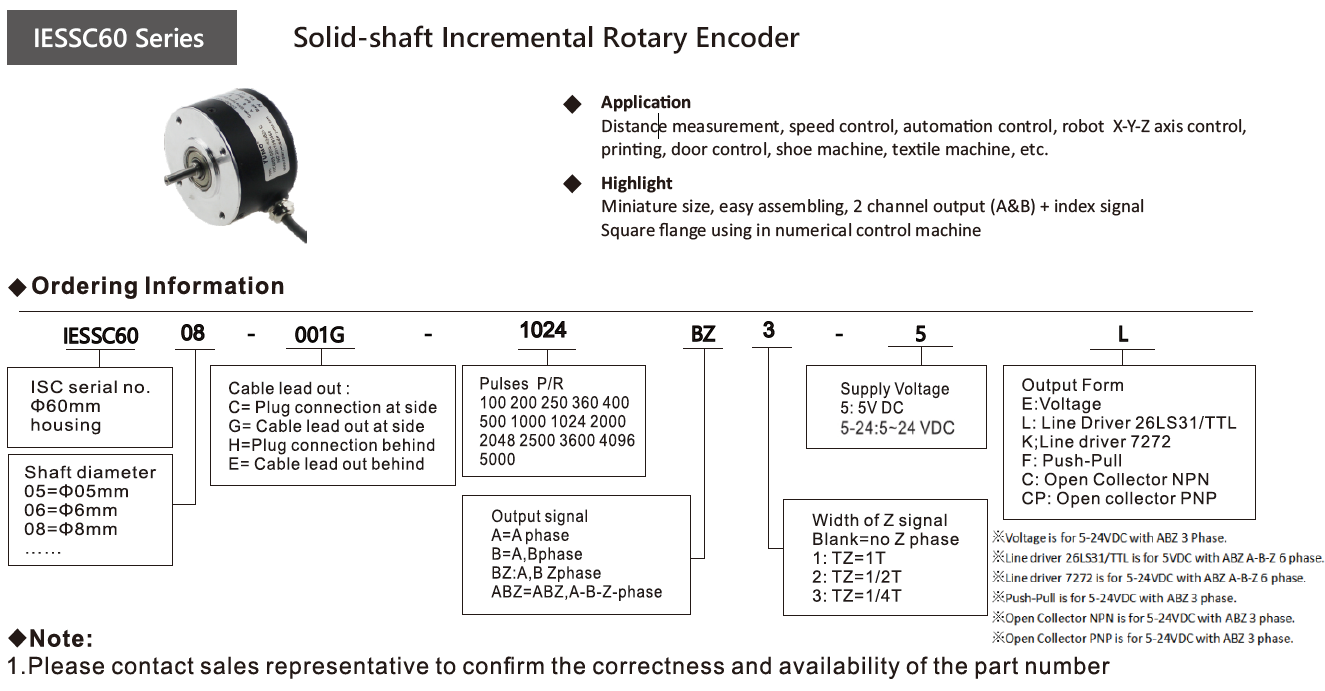

Electrical SpecificationElectrical SpecificationElectrical SpecificationElectrical Specification
Output circuit
Open collector
Voltage output
Push pull output
Line driver output
Power Vcc
5-24
5-24
5+0.25 5-24
5+0.25 5-24
Current
≤80mA
≤80mA
≤80mA
≤150mA
Load current
40mA
40mA
40mA
60mA
Max Responding Frequency
300kHz
300kHz
300kHz
300kHz

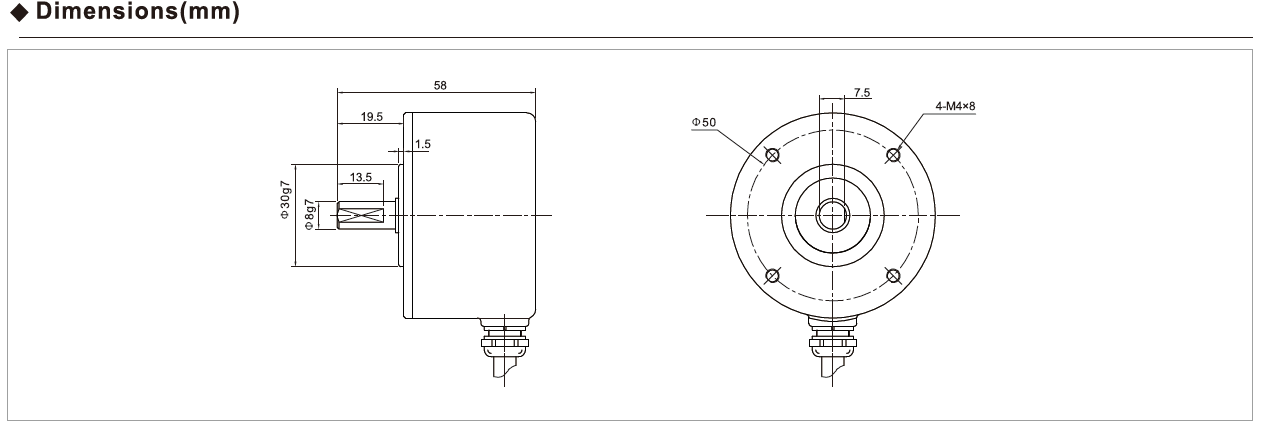

MechanicalSpecification
Max speed(r/min)
Starting Torque
Max.Shaft Loading
Shocking
Vibration
6000
<0.05Nm
Radial:80N,Axial:40N
50G/11ms
10G 10-2000Hz
Rotor Inertia
Working Temperature
Storage Temperature
Protection Grade
Weight
4*10^(-8)Kgm²
-30-85℃
-35-95℃
IP51
270g
Features:
- High-precision feedback on the speed and position of rotating shafts
- Solid shaft design for precise and sturdy installation and maintenance
- Robust construction for long-lasting performance
- Wide range of resolutions and output options
- Suitable for a wide range of applications
A Solid Shaft Rotary Encoder, also called a solid shaft encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code.
There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaft making them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typically further processed elsewhere into information such as speed, distance and position.
Benefits:
- Improves machine performance and efficiency
- Reduces downtime and maintenance costs
- Ensures safety for employees and equipment
- Increases productivity and profitability
- Provides real-time data for informed decision-making
Applications:
- CNC machines and machine tools
- Printing presses and paper converting equipment
- Industrial automation and robotics
- Material handling and conveyors
- And more!
Solid Shaft Rotary encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. Specia purpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and rotating radar platforms.
Upgrade your business and take control of your operations with the Solid Shaft Encoder. Our high-precision feedback device is designed to provide accurate and reliable information on the speed and position of rotating shafts, ensuring that your machines operate at peak performance. Contact us today to learn more about our wide range of Solid Shaft Encoder solutions.
