Key attributes
Industry-specific attributes
Use
esolution, IP address filter
Other attributes
Mounting Type
card slot
Description

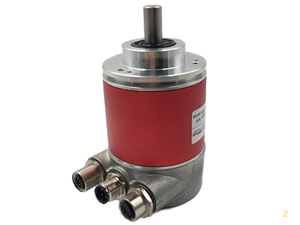

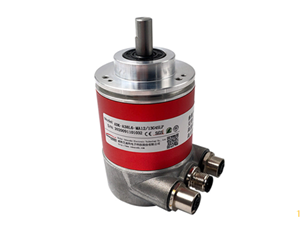

Rotary encoder PROFINET-1213
Model Number
PROFINET-1213
Type
ROTARY ENCODER
Place of Origin
Zhejiang, China
Brand Name
YUMO
Accuracy (INL)
±0.0878°( ≤12bit)
Voltage
10-30VDC
Multi-turn resolution
12bit
Output driver
Ethernet
Interface cycle time
≥ 1 ms
Shaft diameter
10mm
Working Temperature
-40℃~70℃
Stock Temperature
-40℃~85℃
Protect level(shaft)
IP65
