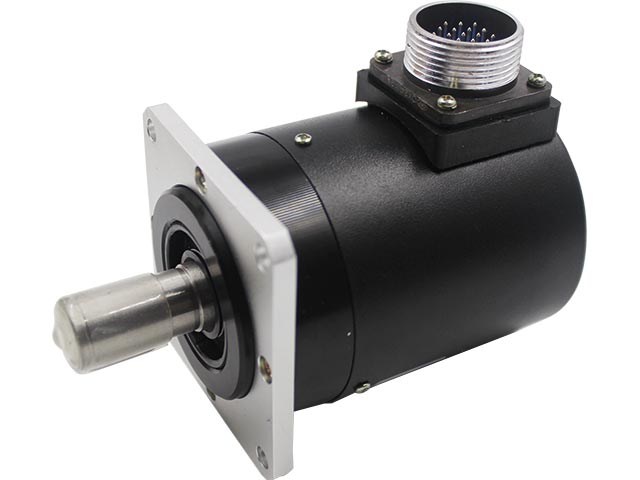

YUMO ISL6815 Series Solid-Shaft Incremental Rotary Encoder

Feature

A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code.
There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaftmaking them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typicallyfurther processed elsewhere into information such as speed, distance and position.

Application

Be used in automatic control,measurements,robotic,X-Y labor and printing.

High reliability,long life,strong anti- interference ability and wide range temperature adaption.

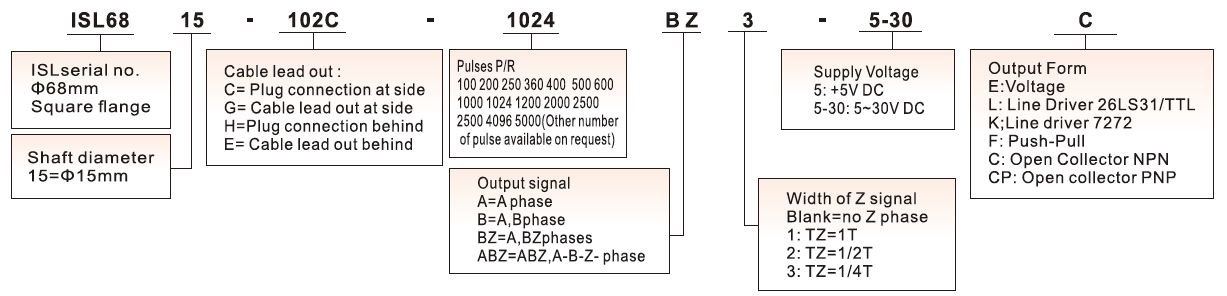

Ordering Information

Technical Specifications

Electrical Specification
Output circuit	Open collector	Voltage output	Push pull output	Line driver output
Power Vcc	5~30	5~30	5±0.25 5~30	5±0.25 5~30
Current	≤80mA	≤80mA	≤80mA	≤150mA
Load current	40mA	40mA	40mA	60mA
High-level output	Min Vcc*70%	Min Vcc-2.5V	Min Vcc-1.5V	Min 3.4V
Low-level output	Max 0.4V	Max 0.4V	Max 0.8V	Max 0.4V
Rise Time Tr	Max 1us	Max 1us	Max 1us	Max 200ns
Fall Time Tr	Max 1us	Max 1us	Max 1us	Max 200ns
Max Responding Frequency	150kHz	150kHz	150kHz	150kHz

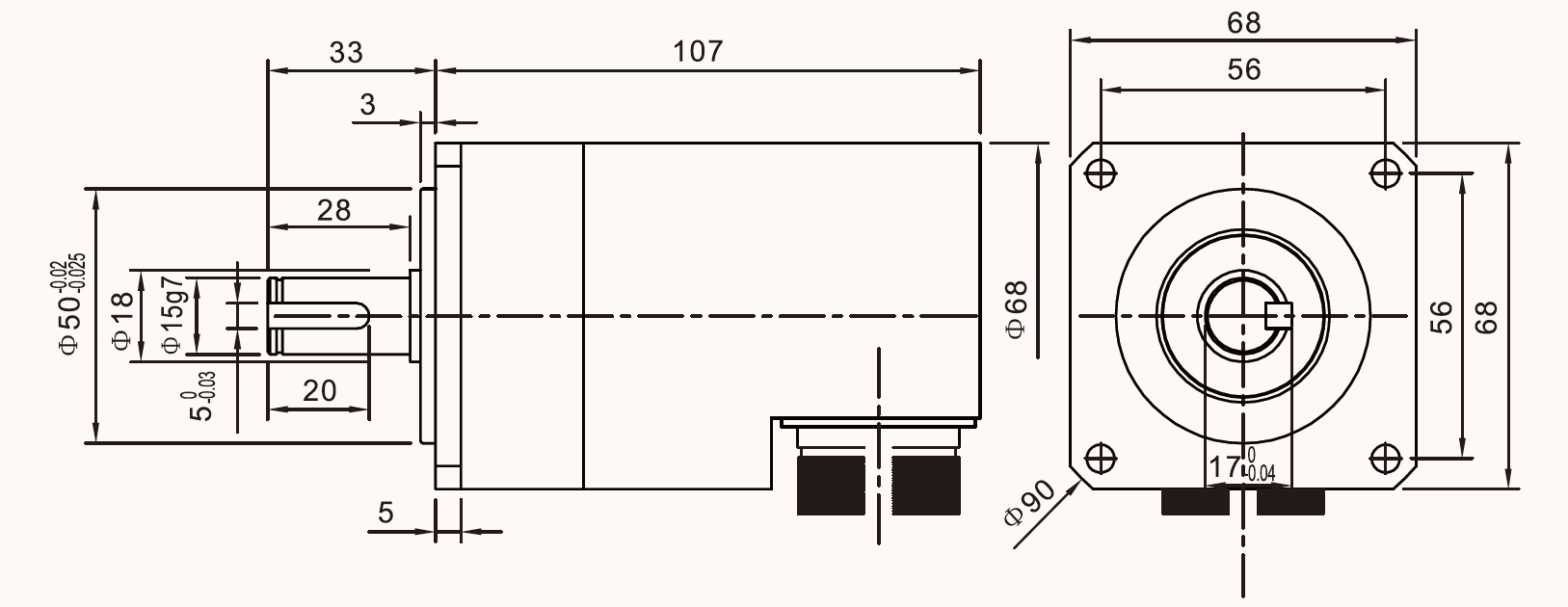

Mechanical Specification
Max speed(r/min)	Starting Torque	Max. Shaft Loading	Shocking	Vibration
5000	<0.12Nm	Radial:85N, Axial:50N	50G/11-ms	10G 10-2000Hz
Rotor Inertia	Working Temperature	Storage Temperature	Protection Grade	Weight
4*10-8Kgm2	-30~80℃	-35~95℃	IP51	600g
