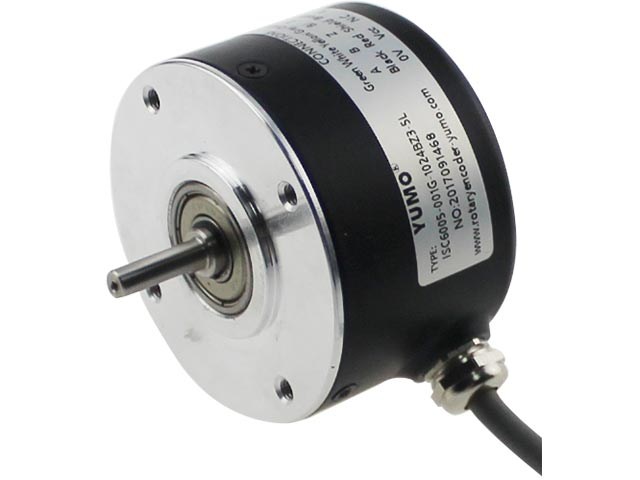

ISC6008 Series Solid-Shaft Incremental Rotary Encoder Application Tensile stress control, cross-table positioning , valve position control, robot, X-Y labor ,printing machine and etc.
Solid shaft rotary encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. Specia purpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and rotating radar platforms.
Features High reliability, long life, strong anti-interference ability 2 quadrature output channel (A&B) + index signal Square flange be used in numerical control machine
A Solid-Shaft Rotary Encoder, also called a solid shaft encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code. There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaftmaking them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typically further processed elsewhere into information such as speed, distance and position.
|

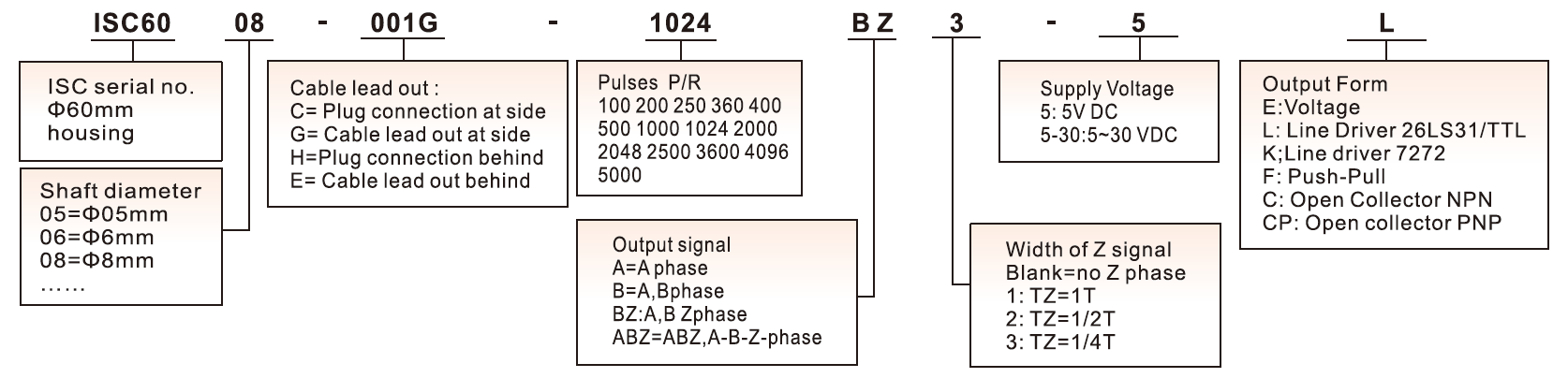

Ordering Information
Note
1, Please contact sales representative to confirm the correctness and availability of the part number
Technical Specifications
Electrical
Specification
Output circuit
Open collector
Voltage output
Push pull output
Line driver output
Power Vcc
5~30
5~30
5±0.25 5~30
5±0.25 5~30
Current
≤80mA
≤80mA
≤80mA
≤150mA
Load current
40mA
40mA
40mA
60mA
Max Responding Frequency
300kHz
300kHz
300kHz
300kHz
Mechanical
Specification
Max speed(r/min)
Starting Torque
Max. Shaft Loading
Shocking
Vibration
6000
<0.05Nm
Radial:80N, Axial:40N
50G/11ms
10G 10-2000Hz
Rotor Inertia
Working Temperature
Storage Temperature
Protection Grade
Weight
4*10-8Kgm2
-30~85℃
-35~95℃
IP51
270g
Output Phase Shift
Wave Ratio: a+b=0.5T±0.1T
c+d=0.5T±0.1T
Z signal Width: Tz=1T±0.5T
Signal position accuracy :
A,B phase absolute angle deviation ≤0.2T
Periodic Deviation ≤0.05T
T=360°/N (N is output pulse number of each spin )
Connection Table
|
Signal |
A |
B |
Z |
Ā |
B(-) |
Z(-) |
Vcc |
GND |
Shielded |
|
Color |
Green |
White |
Yellow |
Brown |
Grey |
Orange |
Red |
Black |
Copper net |
|
7Pin Plug |
3 |
5 |
2 |
- |
- |
- |
1 |
4 |
6 |
|
9Pin Plug |
5 |
3 |
2 |
7 |
6 |
8 |
1 |
4 |
9 |

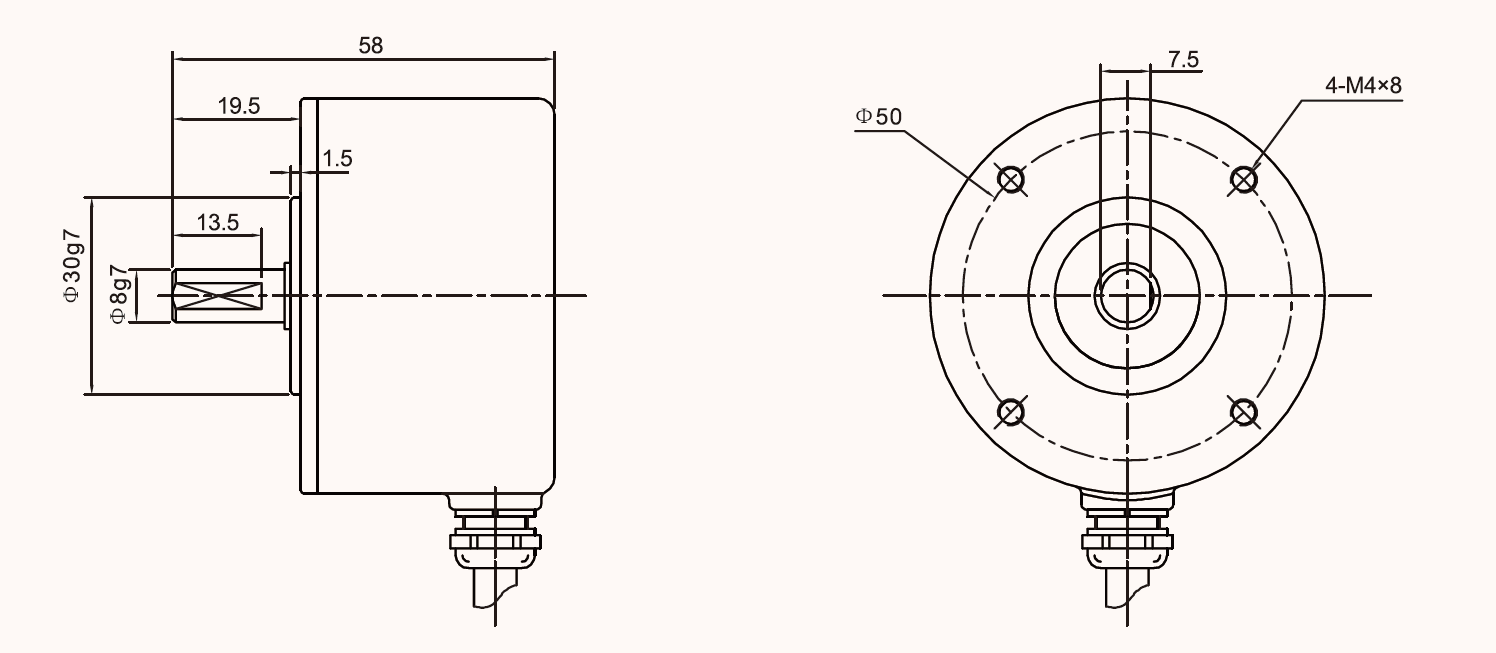

Dimensions(mm)
