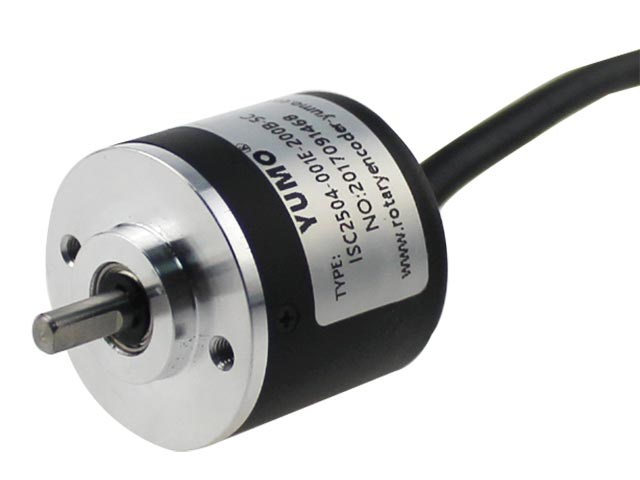

Application Measure the distance, automatic control ,robot, X-Y labor ,printing, curtained door, shoe machine , textile machine and etc. Features Miniature size, easy assembling 2 quadrature output channel (A&B) + index signal Ordering Information
|

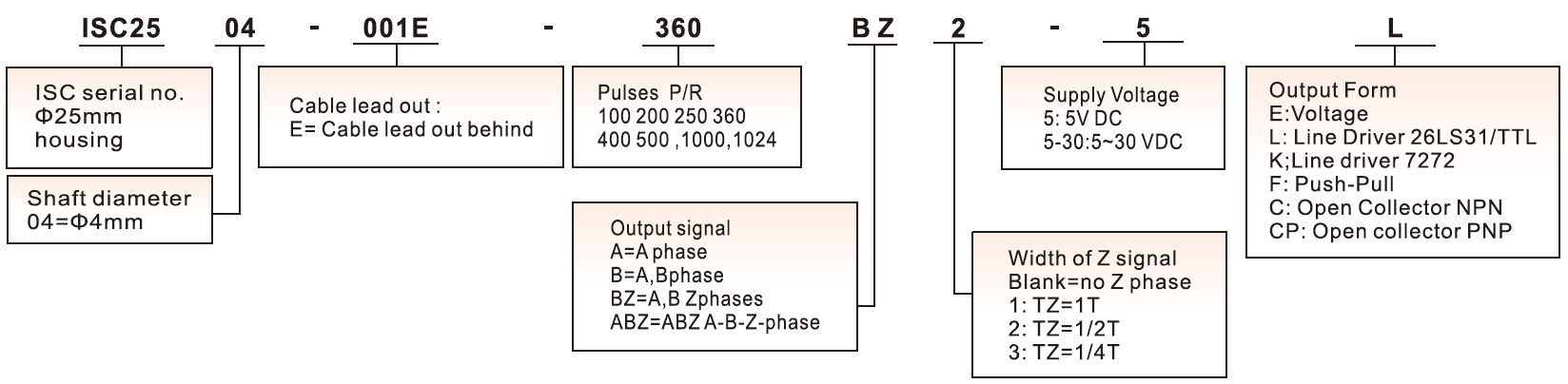

Note
1, Please contact sales representative to confirm the correctness and availability of the part number
Technical Specifications
|
Electrical Specification |
||||
|
Output circuit |
Open collector |
Voltage output |
Push pull output |
Line driver output |
|
Power Vcc |
5~30 |
5~30 |
5±0.25 5~30 |
5±0.25 5~30 |
|
Current |
≤80mA |
≤80mA |
≤80mA |
≤150mA |
|
Load current |
40mA |
40mA |
40mA |
60mA |
|
High-level output |
Min Vcc*70% |
Min Vcc-2.5V |
Min Vcc-1.5V |
Min 3.4V |
|
Low-level output |
Max 0.4V |
Max 0.4V |
Max 0.8V |
Max 0.4V |
|
Rise Time Tr |
Max 1us |
Max 1us |
Max 1us |
Max 200ns |
|
Fall Time Tr |
Max 1us |
Max 1us |
Max 1us |
Max 200ns |
|
Max Responding Frequency |
150kHz |
150kHz |
150kHz |
150kHz |
|
Mechanical Specification |
||||
|
Max speed(r/min) |
Starting Torque |
Max. Shaft Loading |
Shocking |
Vibration |
|
5000 |
<0.03Nm |
Radial:15N, Axial:10N |
50G/11ms |
10G 10-2000Hz |
|
Rotor Inertia |
Working Temperature |
Storage Temperature |
Protection Grade |
Weight |
|
4*10-8Kgm2 |
-25~80℃ |
-30~85℃ |
IP51 |
60g |
Output Phase Shift
Wave Ratio: a+b=0.5T±0.1T
c+d=0.5T±0.1T
Z signal Width: Tz=1T±0.5T
Signal position accuracy :
A,B phase absolute angle deviation ≤0.2T
Periodic Deviation ≤0.05T
T=360°/N (N is output pulse number of each spin )
|
Connection Table |
|
Signal |
A |
B |
Z |
Ā |
B(-) |
Z(-) |
Vcc |
GND |
|
Color |
Green |
White |
Yellow |
Brown |
Grey |
Orange |
Red |
Black |

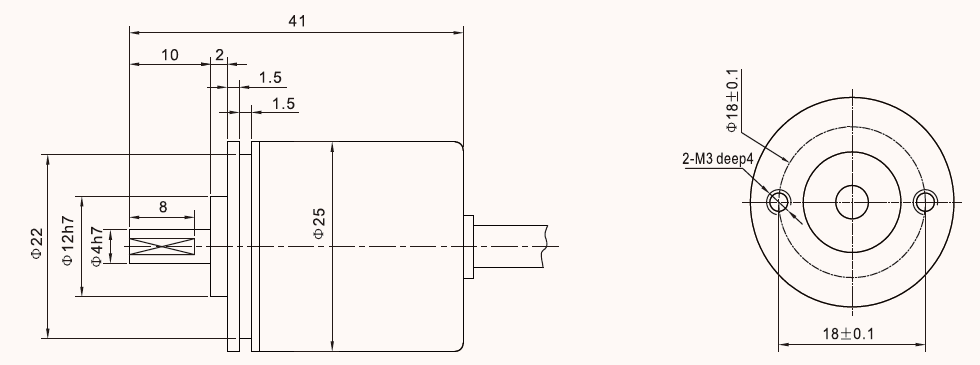

Dimensions(mm)
