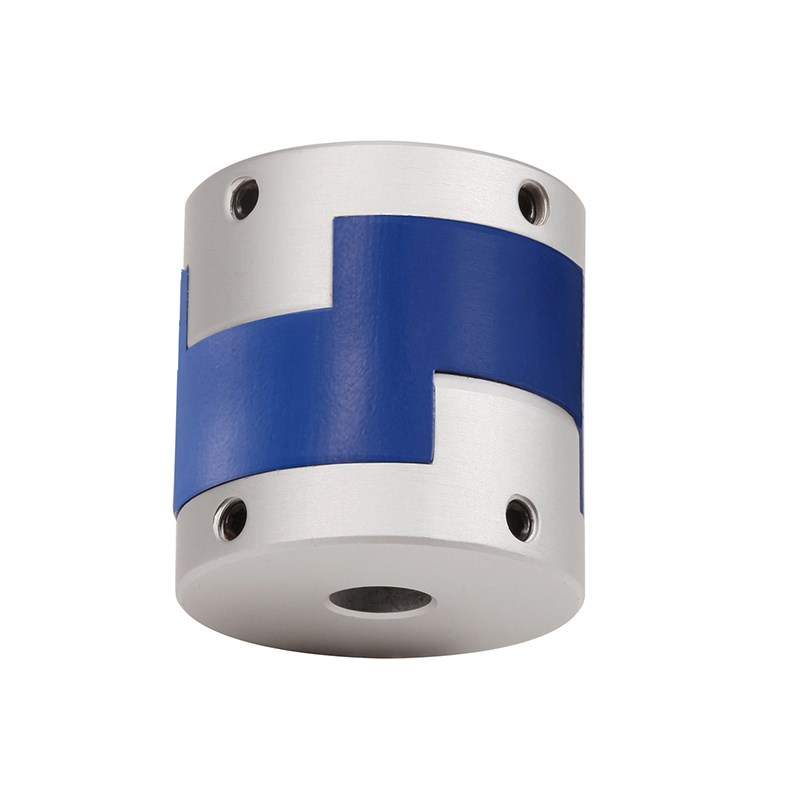

Cross Slider Top wire Oldham coupling screw stepper servo motor torque Flexible couplings

Oldham coupling consists of two half-open on the end face of the coupling groove and a disc with protruding teeth on both sides of the intermediate composition. Protruding teeth can be due to the slide in the groove, it can compensate for installation and operation when the relative displacement between the two shafts.

Inquiry

Product details

d1	d2	D	L	L1	g	M
d1	d2	D	L	L1	g	M
6	6	16	18
8	8	16	18
6	8	16	18
8	8	20	25
10	10	20	25
8	10	20	25
8	8	25	28
14	14	25	28
8	14	25	28
10	10	32	33
16	16	32	33
10	16	32	33
10	10	40	35
19	19	40	35
10	19	40	35
10	10	50	38
24	24	50	38
10	24	50	38
10	10	63	71
35	35	63	71
10	35	63	71
