FEATURES

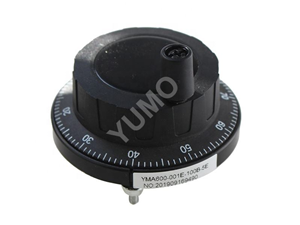

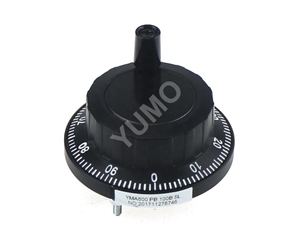

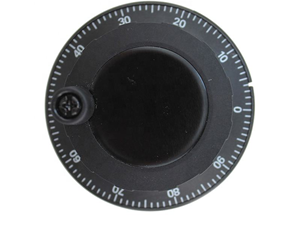

HM80 Series

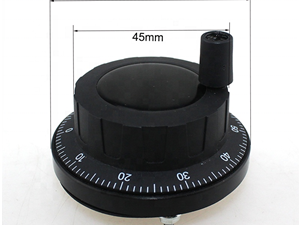

Shell Size
Ø80mm
Resolution P / R signal output to zero
Output phase
B: 2 phase output A, B
ASIC device internal use, high reliability, long life, anti-jamming performance. Stability and protection of stainless steel structure with a higher, more solid metal shell shock.
Metal gear, rotating feel clear.
Used in CNC machine tools, printing machinery zero correction or signal division
Suitable for manual pulse input type such as NC
or milling machinery
High reliability, terminal connection type Power supply:5V DC,12V DC,24DC
ISMP8060 pulse sensor data:
Application
Industrial tolling machinery , zero correction of printing machinery or signal cutting , numerical control machine and etc
Features
Suitable for manual pulses input type such as CNC or milling machine

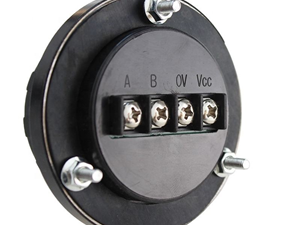

High reliability , terminal connection type
Technical Specifications
|
Electrical Specification |
||||
|
Output circuit |
Open collector |
Voltage output |
Push pull output |
Line driver output |
|
Power Vcc |
5~30 |
5~30 |
5±0.25 5~30 |
5±0.2512V |
|
Current |
≤80mA |
≤80mA |
≤80mA |
≤150mA |
|
Load current |
40mA |
40mA |
40mA |
60mA |
|
High-level output |
Min Vcc*70% |
Min Vcc-2.5V |
Min Vcc-1.5V |
Min 3.4V |
|
Low-level output |
Max 0.4V |
Max 0.4V |
Max 0.8V |
Max 0.4V |
|
Rise Time Tr |
Max 1us |
Max 1us |
Max 1us |
Max 200ns |
|
Fall Time Tr |
Max 1us |
Max 1us |
Max 1us |
Max 200ns |
|
Max Responding Frequency |
10kHz |
10kHz |
10kHz |
10kHz |
|
Mechanical Specification |
||||
|
Max speed(r/min) |
Working Temperature |
Storage Temperature |
Protection Grade |
Weight |
|
600 |
-25~70℃ |
-30~85℃ |
IP50 |
250g |
