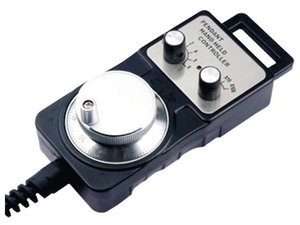

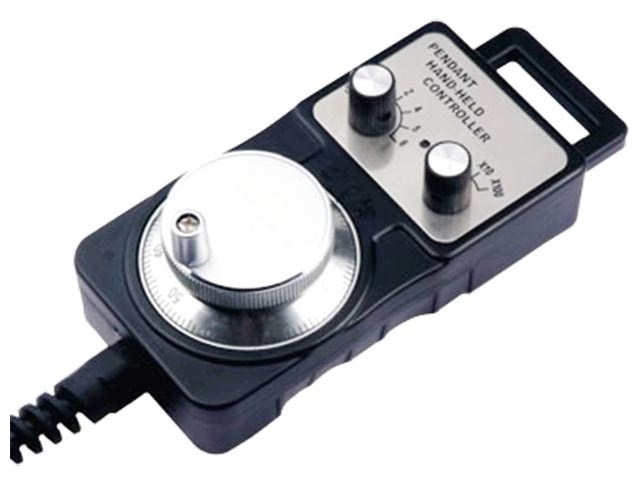

ISMM1469 Series 2-Channel MPGHandheld Pulse Generator Application Industrial tolling machinery, zero correction of printing machinery or signal cutting , numerical control machine or signal dividing.
Rotary encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. speciapurpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and rotating radar platforms.
Features Suitable for manual pulses input type such as CNC or milling machine Plastic case, high electrical resistance. Shaft switching trigger, oil sealed design
A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code.
There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaft making them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typically further processed elsewhere into information such as speed, distance and position.

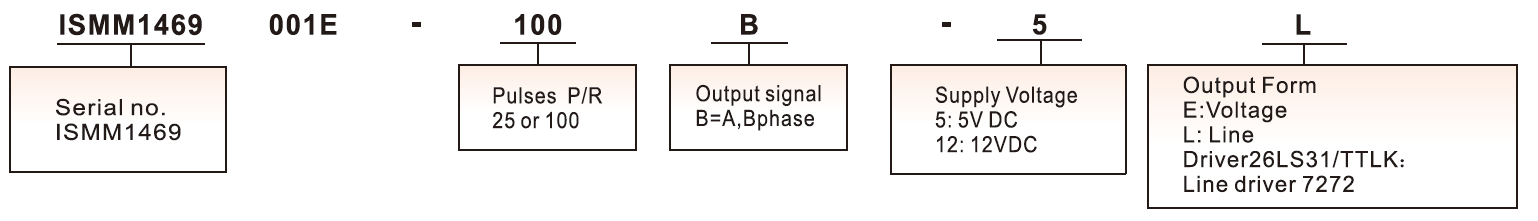

Ordering Information
|
Note
1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Drive is only available with 5VDC,12VDC option
Technical Specifications
|
Electrical Specification |
||||
|
Output circuit |
Open collector |
Voltage output |
Push pull output |
Line driver output |
|
Power Vcc |
5~30 |
5~30 |
5±0.25 5~30 |
5±0.2512V |
|
Current |
≤100mA |
≤100mA |
≤100mA |
≤120mA |
|
Load current |
40mA |
40mA |
40mA |
60mA |
|
High-level output |
Min Vcc*70% |
Min Vcc-2.5V |
Min Vcc-1.5V |
Min 3.4V |
|
Low-level output |
Max 0.4V |
Max 0.4V |
Max 0.8V |
Max 0.4V |
|
Rise Time Tr |
Max 1us |
Max 1us |
Max 1us |
Max 200ns |
|
Fall Time Tr |
Max 1us |
Max 1us |
Max 1us |
Max 200ns |
|
Max Responding Frequency |
20kHz |
20kHz |
20kHz |
20kHz |
|
Mechanical Specification |
||||
|
Max speed(r/min) |
Working Temperature |
Storage Temperature |
Protection Grade |
Weight |
|
600 |
-25~70℃ |
-25~85℃ |
IP50 |
750g |

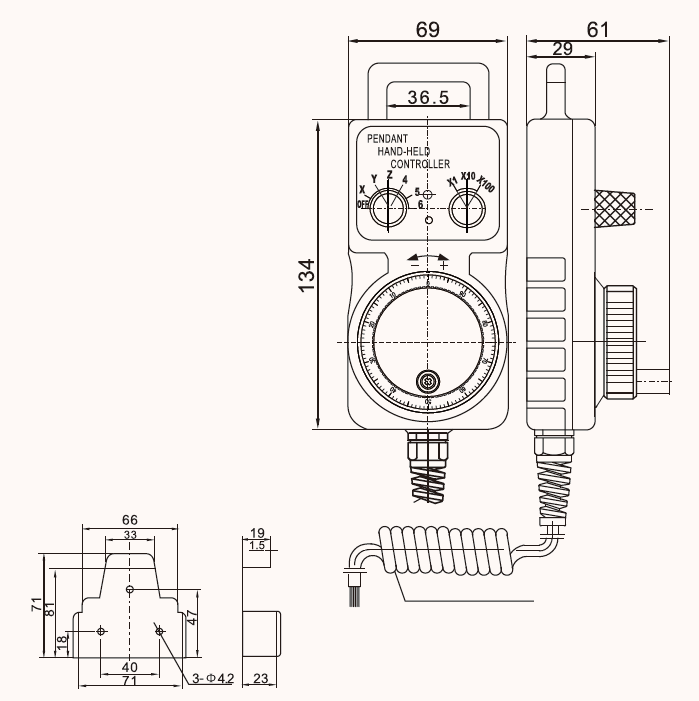

Dimensions(mm)
