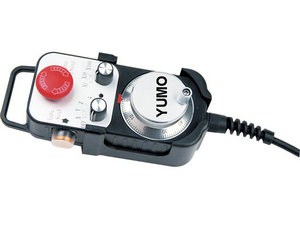

Application Industrial tolling machinery, zero correction of printing machinery or signal cutting , numerical control machine and etc Features Suitable for manual pulses input type such as CNC or milling machine |

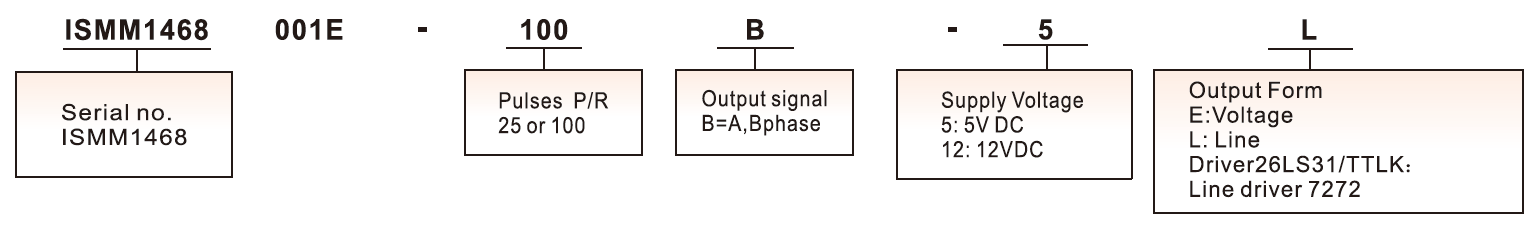

Ordering Information
Note
1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Drive is only available with 5V DC,12VDC option
Technical Specifications
Electrical Specification |
||||
Output circuit |
Open collector |
Voltage output |
Push pull output |
Line driver output |
Power Vcc |
5~30 |
5~30 |
5±0.25 5~30 |
5±0.2512V |
Current |
≤100mA |
≤100mA |
≤100mA |
≤120mA |
Load current |
40mA |
40mA |
40mA |
60mA |
High-level output |
Min Vcc*70% |
Min Vcc-2.5V |
Min Vcc-1.5V |
Min 3.4V |
Low-level output |
Max 0.4V |
Max 0.4V |
Max 0.8V |
Max 0.4V |
Rise Time Tr |
Max 1us |
Max 1us |
Max 1us |
Max 200ns |
Fall Time Tr |
Max 1us |
Max 1us |
Max 1us |
Max 200ns |
Max Responding Frequency |
20kHz |
20kHz |
20kHz |
20kHz |
Mechanical Specification |
||||
Max speed(r/min) |
Working Temperature |
Storage Temperature |
Protection Grade |
Weight |
600 |
-25~70℃ |
-25~85℃ |
IP50 |
750g |

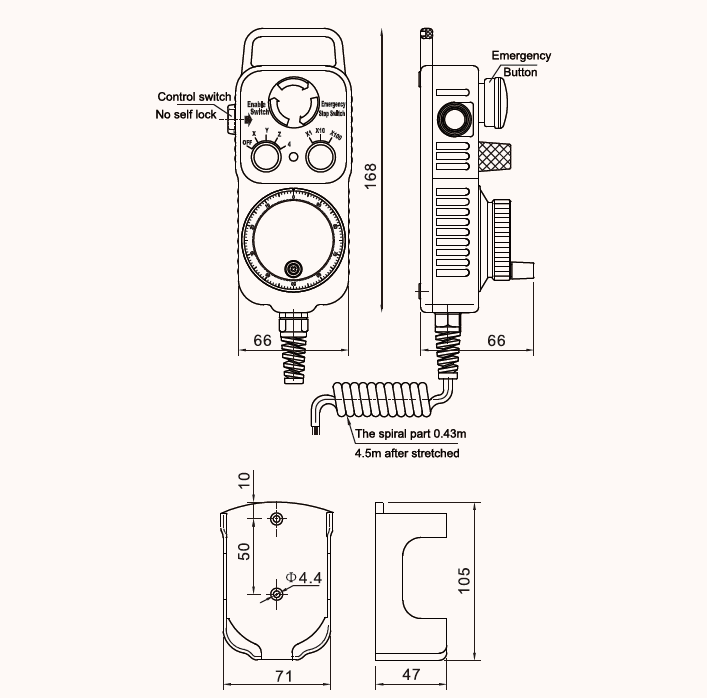

Dimensions(mm)
