Feature:
A Solid Shaft Absolute Rotary Encoder, also called a absolute encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code.
There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaft making them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typically further processed elsewhere into information such as speed, distance and position.
Application:
Absolute encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. Specia purpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and rotating radar platforms.

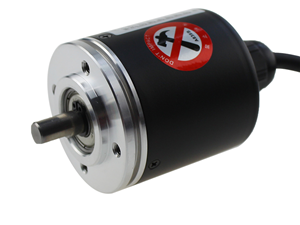

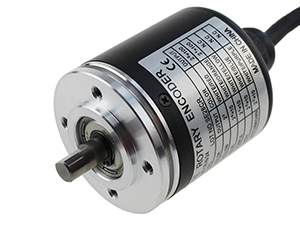

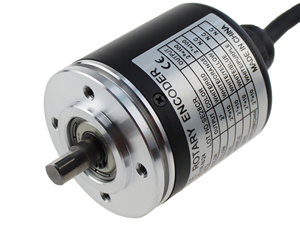

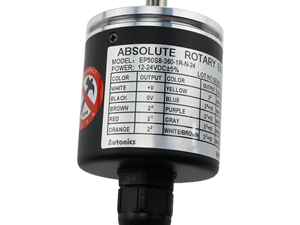

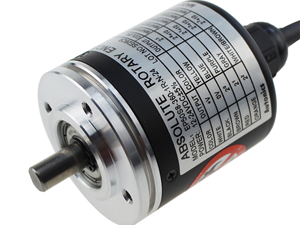

EP50S8 Diameter 50mm 360ppr IP64 Shaft Type Absolute Rotary Encoder
| Specifi cations | |
| Series | Diameter ø50mm, shaft type |
| Shaft diameter | ø8mm |
| Pulse/ 1Revolution | 360ppr |
| Output code | BCD Code |
| Revolution direction | Output value increase at CCW direction |
| Output | NPN open collector output |
| Power supply | 12-24VDC±5% |
| Ambient temperature | -10~70℃, Storage: -25~85℃ |
| Protectio | IP64 |
| Dimensions (mm) | |
 |
|
