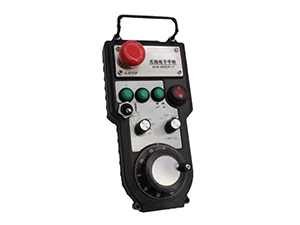

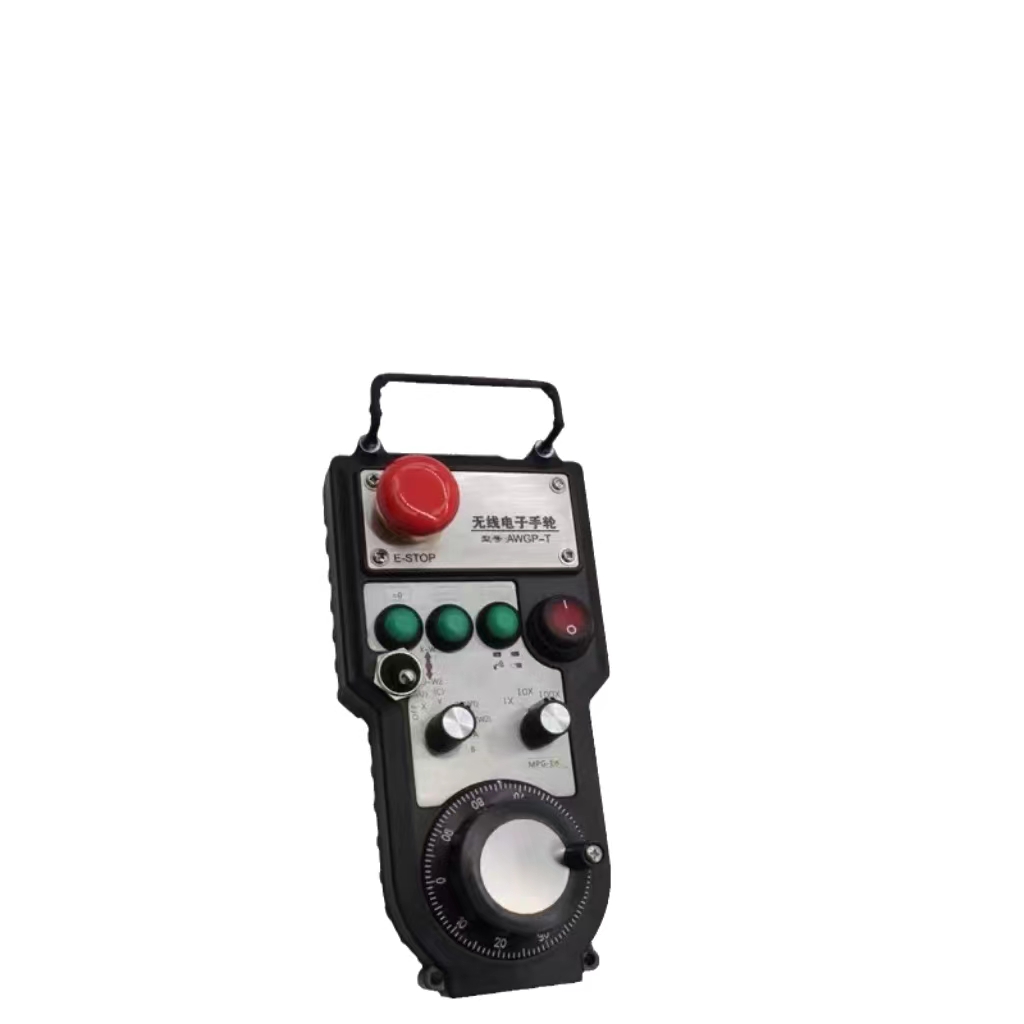

Main features of the product
By using wireless transmission technology to connect with the receiver, the operator can hold a handwheel and get rid of the connection constraints of the spring wire, allowing for free movement, easy operation, freedom, stability and reliability, and reducing the failure rate.
1. Adopting 433MHZ wireless transmission frequency, with a transmission power of 10DB and an unobstructed transmission distance of 40 meters. 2. Frequency hopping transmission, within the same usage range, can support 32 sets of wireless handwheels for simultaneous use.
3. Adopting a low-power design with an average operating current of less than 8 mA; 2 AA batteries used normally for 30 days
4. Adopting anti-interference design, complying with CE and FCC standards
5. After 4 years of industry customer application testing and use, the work is stable and reliable, and the operation is convenient
One pulse encoder, 100 pulses/turn, one emergency stop button, one 9-speed axis selection switch, one 3-speed multiplication selection switch, three custom function buttons "~" "+" (switch signal output
32 sets can be used simultaneously without interfering with each other
A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converis the angular position or motion of a shaf or axleto an analog or digital code.
There are two main types: absolute and incremental (relative). The output of absolute encoders indicates the curent position of the shaft making them angle transducers. The output of incremental encoders provides information about the motion of the shaf, which is typically further processed elsewhere into information such as speed, distance and position.
Rotary encoders are used in many applicaions that reauire precise shat unlimited rotaion-incuding industrial controls. robotics. speciapurpose photographic lenses,computer input devices (such as optomechanical mice and trackballs), controlled stress rheometers, and rotating radar platforms.
Place of Origin
China
Brand Name
YUMO
Model Number
AWGP-10-axis
Product name
MPG
Type
Wireless Handwheel
Name
Handheld Pulse Generator
Meterial
Plastic+S45C Plastic
Quality
Perfect Machine Hand Wheel
Color
Black
Usage
System
MOQ
10pcs
Q:How to order our product?
A: 1) Please tell us the model and quantity and other request you need.
2) We make the PI for you.
3) After you confirm the PI, we arrange the order for you after receiving your payment.
4) After the goods finished, we send the goods out to you and tell you the tracking number.
5) We will track your goods until you receive the goods.
Q: What's your warranty?
A: One year.
Q: What's your contact information?
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What about MOQ?
A: First order MOQ=1pcs.
Q: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
